|EZ 3 series||Versatility, quality and convenience|
What would optimize your print job operations?
Lower costs? Faster speed? Higher image quality?
RISO EZ series digital duplicators offer lower running costs and higher printing speed to achieve greater expense reduction and productivity than photocopiers and printers can provide.
They can process large-batch printing to maximize efficiency in many ways, delivering everything from fixed-form documents to envelopes, cards, leaflets, educational materials and more.
The EZ371's superior value, A3-size print capability, exceptional image quality, versatile performance and affordable price make it the smart solution for handling a wide range of printing work.

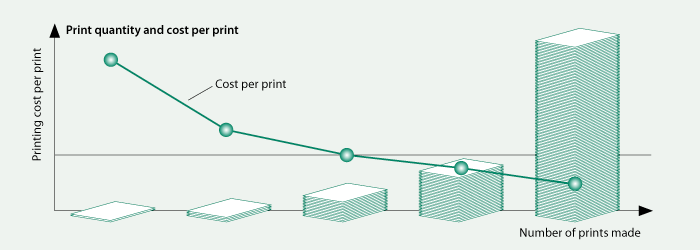

Overall operating costs for photocopiers and printers can be surprisingly higher than you imagine. But RISO EZ series digital duplicators reduce the cost per print of higher volume jobs. How? By scanning the paper original or sending data from a PC for master-making, realizing greater cost efficiency than photocopiers, other printers or outside print shop services can provide.
Allows special-paper printing in-house
The EZ371 can handle special papers including thick paper, thin paper, envelopes and cards, so you can print more in-house and reduce outsourcing. Use less costly paper to cut costs even further.
A digital duplicator consumes as little as about 1/6th* the energy of a photocopier. For extra power efficiency, the EZ371 features an ECO mode to minimize electricity consumption without compromising print quality. When the machine has not been used for a while, Auto Sleep Mode automatically turns on Sleep Mode, reducing power consumption to just about 5W. Auto Power-OFF Mode turns the power off automatically after a certain period of time elapses.
*When compared with a B&W photocopier of approx. 1500W.
Ink Saving Mode
The Ink Saving Mode minimizes ink usage - making large-volume printing especially cost- effective.
Saves paper, too
To reduce paper costs, the machine can print multiple originals onto one sheet of paper.
No worries - anyone can operate the machine as if it was an ordinary copy machine. Output setting is simple.
|1.||Set the original and press the start key to make a master.||2.||Input the number of prints desired and
press the start key again to start printing.
More ease of operation!
Convenient master disposal
The Master Disposal Box is compact and upright, so disposing of used masters stored in it is as simple as pushing a lever. And you won’t stain your hands.
Easy replacement of consumables
An LED blinks to indicate that ink or masters are running low. Replacing ink bottles is as easy as a single click after opening the front door. Masters are easy to change, too.
Color Universal Design
With operational color design authorized by Color Universal Design Organization, operation parts are arranged for easy identification and with consideration for people with color vision deficiency.
The EZ371 does a beautiful job of printing high-quality text and images for a range of work - fixed-form documents, envelopes, leaflets, teaching materials and more.
Optimum output, faithful to the original
For optimal output, the EZ371 features four preset image processing modes: Line, Photo, Duo (line/photo/shadow off) and Pencil (darker/lighter).
Clearly reproduces penciled text and stamp marks
Press the pencil key for clearer output of text and lines faintly drawn by pencil as well as stamp marks.
Use dot screening (fine/coarse) for clearer photo image output.
Higher quality printing with a PC
The optional RISO PC Interface Card USB2.0 enables direct printing from a PC via a USB cable, which keeps the output looking more beautiful. An optional RISO Network Card enables network connection.
Optional color drum for adding color
Spot color can help documents stand out. The machine's color drum is designed to be light, easy to set and user-friendly. It accommodates a wide variety of inks in 21 standard colors, 50 custom colors, plus special order-made colors that can give corporate logos an extra-special look.
Suddenly need a large volume of prints? Don't panic. The EZ371 can print at a maximum of 130 pages per minute. That's over 1,000 pages in only eight minutes - much faster than photocopiers or printers can perform.
Program output for easy group sorting
Besides speedy printing, the EZ371 is capable of quickly sorting output documents by group. Use Program A to output different quantities of prints per group, or Program B to output different quantities per page of multiple-page originals. Programs can be saved for later retrieval, so there's no need to repeat input routines each time. Also, an optional Job Separator raises sorting efficiency by inserting tape to mark the end of a job.
"Domino theory" paper output mechanism neatly stacks papers at high speed
Thanks to the paper arrangers based on the "domino theory" paper output mechanism, papers are output at high speed and neatly stacked on the V-shaped paper receiving tray for easy removal. The receiving tray paper guides are designed to that they can be tilted outward for easy paper removal.
The one-million-output and other durability tests make the machine supremely reliable. It's built to last, extending its cost-effective qualities to the limit. With such high performance made for posterity, the EZ371 is an exemplary long-term performer.
Friendly to the environment
The EZ371 consumes energy very sparingly, using just about 1/6th* of the power that a photocopier requires. The ink it uses is made of eco-friendly soy oil. RISO makes products that conform to the International Energy Star Program.
*When compared with a B&W photocopier of approx.1500W.
The EZ371 features security functions that can limit user access or secure original data in order to protect against information leakage. After printing, the master remains on the drum so that it can be printed at any time. Turn on Confidential mode, and the master on the drum is disposed of to safeguard against undesired printing of confidential documents.
RISO i Quality System
The RISO i Quality System offers a large number of quality and convenience benefits. Among them are:
- Automatic assurance of optimum print quality
- Prevention of operator error
- Warning of shortages in remaining ink/master volume
- Minimized paper waste
|Master-making / Printing methods||High-speed digital master-making / Fully automatic stencil printing|
|Original Type||Book, Sheet|
|Original Size||When using the Glass Platen : 50 mm x 90 mm - 310 mm x 432 mm
When using the AF-VI (option) : 100 mm x 148 mm - 310 mm x 432 mm
|Original Paper Weight||When using the Glass Platen : 10 kg or less
When using the AF-VI (option) : 50 gsm - 128 gsm
|Scanning Area (max.)||297 mm x 432 mm|
|Print Paper Size||100 mm x 148 mm - 310 mm x 432 mm|
|Paper Supply Capacity||1000 sheets (64 gsm)|
|Print Paper Weight||Standard : 46 gsm - 210 gsm
When using the Card Feed Kit (option): 100 gsm - 400 gsm
|Image Processing Mode||Line, Photo, Duo, Pencil|
|Resolution||Scanning resolution: 300dpi x 600dpi
Printing image resolution: 300dpi x 600dpi
(600dpi x 600dpi: Perforation density on the master)
(for 100% reproduction ratio)
|Approx. 16 seconds (for A4 / Landscape)
Approx. 20 seconds (for A4 / Portrait)
|Approx. 20 seconds (for A4 / Portrait)||Approx. 22 seconds (for A4 / Portrait)|
|Printing Area (max.)||291 mm x 413 mm||251 mm x 357 mm||210 mm x 290 mm|
|Print Reproduction Ratio||3 enlargements: 116%, 122%, 141%
3 reductions: 87%, 82%, 71%
Zoom: 50% - 200% in 1% increments
|Print Speed||60 ppm - 130 ppm (5 steps variable)|
|Print Position Adjustment||Vertical: ± 15 mm
Horizontal: ± 10 mm
|Ink Supply||Fully automatic (1,000 ml per cartridge)|
|Master Supply / Disposal||Fully automatic (220 sheets per roll)||Fully automatic (250 sheets per roll)||Fully automatic (295 sheets per roll)|
|Master Disposal Capacity||Approx. 100 sheets|
|User Interface||LED Panel with Progress Arrow indicators, Front Side Operation|
|Power Source||EZ371A: 220V - 240V AC, <1.3A> 50Hz - 60Hz
EZ371A(N): 100V - 120V AC, <2.5A> 50Hz - 60Hz
EZ371E: 220V - 240V AC, <1.3A> 50Hz - 60Hz
|EZ331A: 220V - 240V AC, <1.3A> 50Hz - 60Hz||EZ301E: 220V - 240V AC, <1.3A> 50Hz - 60Hz|
|Dimensions (W×D×H) without stand||When in use: 1415mm(W) x 655mm(D) x 665mm(H)
When in storage: 780mm(W) x 655mm(D) x 665mm(H)
|Weight without stand||Approx. 101kg|
Specifications are subject to change without notice. Details may vary depending on the region.
