RISO COLLATOR TC7100

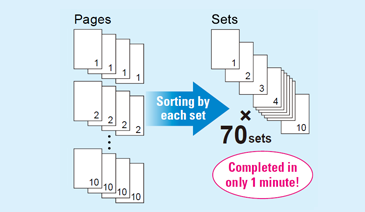

High-speed process to collate up to 70 sets per minute.
In case of 10 pages of A4-size documents, the machine collates up to 70 sets of paper sheets in only one minute.

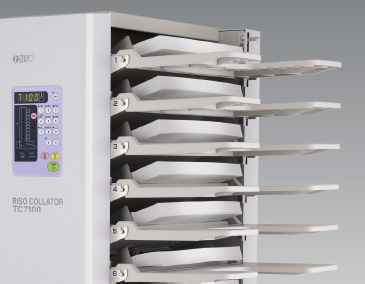

Each paper bin can accept up to 350 sheets of paper.
The machine handles paper in various sizes ranging from a postcard size to an A3+ size.
Because each paper bin can accept up to 350 paper sheets in one time, even large volume of paper can be collated efficiently.
Alignment the paper edges precisely.
Using the horizontal slide mechanism, the machine can sort documents smoothly and align the paper edges precisely.
You can significantly reduce the time and labor for sorting.

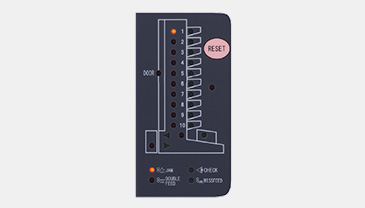

A panel on the machine shows paper feeding condition.
The sensor always monitors errors such as paper jams, multiple feeding and unloaded feeding, and shows the place and details of the error with the light.
Alternate mode for more than 350 sets of documents, Insert mode for partitioning sheets.
In the alternate mode, neighboring two bins are used together for the same sheet to produce more than 350 sets of documents that have 5 or less pages in one operation. In the insert mode, partitioning sheets are inserted between a designated numbers of collated sets.

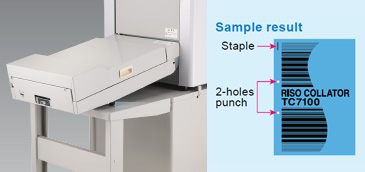

TC Staple Punch
The optional TC Staple Punch Unit can be attached to the tower. Where producing 11 collated sets of 10 A4 paper in long-edge feeding, process from collation to stapling and 2-hole punching can be done automatically in only one minute or less.
*Picture: A collator combined with the optional RISO Collator TC Stand II and the optional TC Extension Stand.
Specifications
TC7100 Specifications
| number of bins | 10 bins | |
|---|---|---|
| Paper size | Maximum: 328 x 469mm (12.9"x18.5") Minimum: 95 x 150mm (3.8" x 5.9") |
|
| Paper weight | 52gsm (14-lb bond) to 157gsm (87-lb index)*1 | |
| Bin capacity | 28mm, 350sheets of 64gsm(17-lb bond) paper | |
| Collating speed | 2 levels (70 or 40 sets per minute for A4 long-edge feeding) | |
| Stacking mode | Off-set Stacking or Straight Stacking | |
| Job mode | Normal mode/Alternate mode/Insert mode/Repeat mode | |
| Detecting functions | Empty feed, No paper, Paper jam, Double feed, Receiving tray full, Paper eject jam, Back door open, Option error | |
| Operation panel | 4 digits LED counter | |
| Receiving tray capacity | 75mm | |
| Power source | 100-240V AC, 50/60Hz <2.0-1.2A> | |
| Power consumption | Maximum: 120W | |
| Dimensions (WxDxH) | 690mm x 540mm x 1,060mm (27.1" x 21.3" x 41.8") | |
| Dimensions (WxDxH) with anti-fall plate | 885mm x 540mm x 1,060mm (34.9" x 21.3" x 41.8") | |
| Weight | 79.7kg (175.7lb) | |
*1:Up to A3 size.
Notes: Please note that due to improvements and changes to the machine, some images and explanations in this leaflet may not correspond to your machine. Specifications are subject to change without prior notice.
TC Staple Punch Specifications
| Compatible model | RISO COLLATOR TC7100 | |
|---|---|---|
| Paper size | A3, B4(JIS), A4, B5(JIS) | |
| Paper weight | 52gsm (14-lb bond) to 128gsm (34-lb bond) | |
| Productivity | With staple and punch: 11 sets per minute for A4 LEF With staple : 14 sets per minute for A4 LEF |
|
| Staple | 1 corner | |
| Punch holes | 2 holes at the center of the feeding edge Diameter 6mm, Pitch 80mm |
|
| Power source | 100-240V AC, 50/60Hz <0.3-0.2A> | |
| Power consumption | Maximum: 19W | |
| Dimensions (WxDxH) | 1,315mm x 540mm x 1,060mm (51.7" x 21.3" x 41.8")*2 | |
| Weight | 19kg (42lb)*2 | |
*1: Including RISO COLLATOR TC7100
