CV series

CV series High value contained in an incredibly compact design!
Specifications
  • CV3230 B4
  • CV3130 Legal
  • CV3030 A4

Considerable experience in varied markets provides RISO with
insights on customer requirements across the world.

CV series from RISO is the result of these valuable insights and RISO's in-house R&D.
It provides all the benefits that our customers desire including cost- and time-saving combined with ease of operation, superior print quality and a user-friendly design.
The CV series delivers Customer Value, like no other equipment in its class.

Value 1 Cost-efficient and time-saving

The CV series increases printing efficiency

Savings in print costs

The CV series makes prints from a master. As a result, the more pages generated from each master the lower the cost per print, making it highly economical for medium- to high-volume printing.

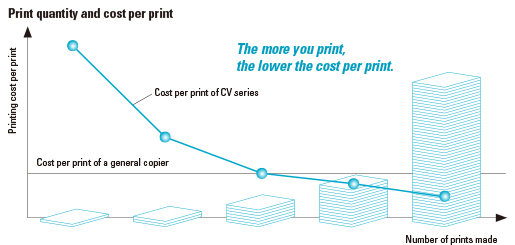

Print quantity and cost per print

High-speed printing of 130 ppm

The CV series provides high-speed printing of up to130 ppm which means 500 pages in less than 4 minutes.

Time required to print 500 pages

Adequate paper capacity

The paper trays have a capacity of approx. 1000 sheets for feeding and approx. 800 sheets for receiving, which ensures uninterrupted printing over a longer period.

Note: The paper capacity depends on paper type.

Value 2 Convenient and easy operation

Designed with the customer's needs in mind

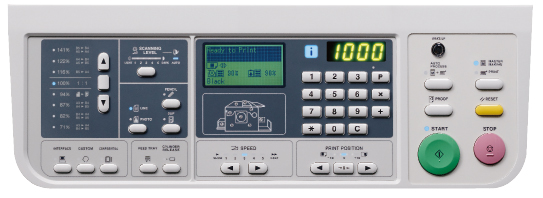

Easy-to-operate LCD panel

The 128 x 64 dot LCD panel is clearer to view and easier to operate than ever before.

Convenient PC connectivity via USB

Inbuilt USB PC interface enables easy connection to a PC.

Direct printing with a USB flash drive

You can print directly from the data saved in a USB flash drive. This is convenient when the machine is not connected to a PC or network. Also, printing directly from original data ensures better printing quality.

Auto Document Feeder (ADF)

Instead of feeding sheets individually, the ADF enables approx. 10 sheets to be fed automatically.

Note: The paper capacity depends on paper type.

Easy access to the print drum

Changing ink color is simple yet effective to emphasize the original. The design allows quick and easy removal and replacement of the print drum. This helps minimize interruption at busy times.

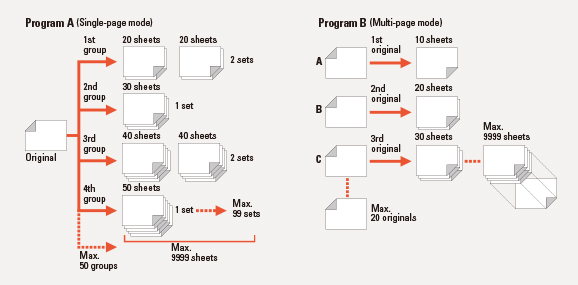

Versatile program print

For example, you can print question papers for three different classes, A, B and C that contain different numbers of students. Simply set up the program, place the three original tests in the ADF and press [START] key - you'll automatically receive the required numbers of each individual test.

Program A (Single-page mode)

Value 3 Excellent print quality

Achieved through RISO's cutting-edge technologies

Improved image processing and resolution provide unmatched print quality at this price point

High-quality printing is achieved by using a higher-resolution thermal head which is normally employed in higher models. The new light source delivers improved color reproducibility of Red and Bright Red. Also the tonality and resolution have been improved at the highlight range thanks to the enhanced error-diffusion processing.

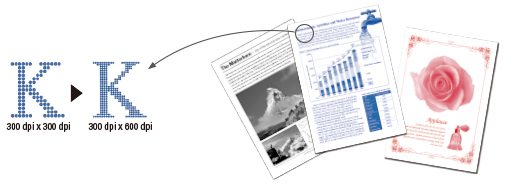

Clear reproduction of fine details

With enhanced resolution, even fine details can be clearly reproduced retaining legibility while preventing moiré.

Quality output from various types of originals

Four image-processing modes: Line, Photo, Duo, and Pencil are selectable.

Ink color variations

A range of colors can meet the needs of a variety of print jobs.

Auto base control

Automatically compensates for newspaper originals or originals made on recycled paper, removing the background greyness so your output always has a clear, white background.

Versatile paper handling capability

The CV series accepts a wide range of paper types including recycled paper.

Three enlargement and four reduction settings

Easy operation with preset buttons. Just press your required size, it's fail-proof.

Value 4 Design that makes a difference

User-oriented design for extended use

Displays residual capacity of supplies

The display shows the residual capacity of supplies, thus avoiding an out-of-stock situation.

RISO i Quality System

Recognizes master and ink information by two-way communication with attached RF tag and adjusts the performance automatically. This contributes to quality stability and improvement. It also supports inventory control of consumables.

RISO iQualitySystem

Paper saving

- 2-Up printing
Reduces paper by printing two originals onto one sheet of paper.

- Direct printing
No need to prepare an original before printout.Direct data processing prevents paper wastage.

Eco-friendly

- ENERGY STAR® certified
- Complies with the ErP directive in Europe
- Consumes less power and produces less heat

The CV series consumes much less power for printing than general B&W photocopiers/laser printers.

- Energy-saving system
With the introduction of auto power shut-off and auto sleep functions,
the CV series supports energy saving.

Safety and durability

The CV series inspires confidence by delivering the same level of durability and operational safety that RISO is known for worldwide.

High-quality RISO consumables

RISO is the only company to develop and manufacture both the machine and consumables in-house, thus assuring consistent and high-quality output.

RISO MASTER CV B4 (200 sheets per roll) RISO INK CV BLACK (800 ml per cartridge) RISO INK CV COLOR (800 ml per cartridge)
RISO MASTER CV B4 (200 sheets per roll)
RISO INK CV BLACK (800 ml per cartridge)
RISO INK CV COLOR (800 ml per cartridge)

RISO MASTER CV B4
RISO MASTER CV B4 (RISO MASTER
CV A4/Legal is different in size)

RISO INK CV BLACK
RISO INK CV BLACK

Ergonomic design

Intuitive operation

The new operation panel is designed for
intuitive operation, making it user-friendly.
The left-to-right keyboard layout provides
fluent operation; for initial setting, master-making and printing.

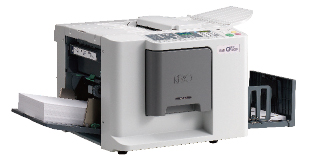

Compact

New design, smooth lines and a compact body result in reduced size and bulk, to fit in even a limited space.

Simple and stylish

The CV series' simple and stylish design makes changing the drum very easy.

Specifications CV3230 CV3130 CV3030
Master-making/Printing Methods High-speed digital master-making/fully automatic printing
Original Type Sheet
Original Size (min./max.) 90 mm x 140 mm - 310 mm x 435 mm
Original Paper Weight 50 gsm - 107 gsm
Original Paper Capacity Approx. 10 sheets (64 gsm - 80 gsm / Maximum height 1 mm)
Scanning Area (max.) 297 mm x 435 mm
Printing Paper Size (min./max.) Minimum size: 100 mm x 148 mm
Maximum size: 297 mm x 420 mm
Minimum size: 100 mm x 148 mm
Maximum size: 297 mm x 420 mm
Minimum size: 100 mm x 148 mm
Maximum size: 257 mm x 364 mm
Paper Supply Capacity Approx. 1000 sheets (64 gsm to 80 gsm / Maximum height: 110 mm)
Paper Receiving Capacity Approx. 800 sheets (64 gsm to 80 gsm / Maximum height: 90 mm)
Printing Paper Weight 50 gsm - 157 gsm
Image Processing Mode Line, Photo, Duo, Pencil
Scanning Resolution 300 dpi x 600 dpi
Printing Image Resolution 300 dpi x 600 dpi (600 dpi x 600 dpi: Perforation density on the master)
Master-making Time Approx. 35 seconds or less (for B4 originals/short edge feed/100% reproduction ratio)
Printing Area (max.) 251 mm x 357 mm 210 mm x 357 mm 210 mm x 290 mm
Print Reproduction Ratio Standard reproduction ratio (enlargement): 141%, 122%, 116%
Standard reproduction ratio (reduction): 94%, 87%, 82%, 71%
Print Speed 60 - 130 sheets per minute (five steps variable)
Print Position Adjustment Vertical: ±10 mm, Horizontal: ±10 mm *1
Ink Supply Fully automatic (800 ml per cartridge)
Master Supply/Disposal Fully automatic (200 sheets per roll) Fully automatic (200 sheets per roll) Fully automatic (235 sheets per roll)
Master Disposal Capacity Approx. 30 sheets
User Interface LCD panel
Computer Connection USB PC Interface
Optional Accessories Color Drum (Cylinder), Job Separator
Operating Noise Max. 68 dB(A) (when printing 100 sheets per minute in the operator position)
Power Source*2 AC 100-120 V/220-240 V, 50-60 Hz <2.0 A/1.0 A>
Power Consumption Max. 200 W
At Ready: 15 W or less
At Sleep: 10 W or less
Functions Image Processing Mode (Line/Photo/Duo), Pencil, Enlargement/Reduction, Scanning Level, 2up, Auto Process, Proof, Print Position, Speed, Program (A/B), Confidential, Custom Setting Mode, Direct Printing, USB Flash-via-Printing, Consumables Information, Energy Saving Mode (Auto Sleep/Auto Power-OFF), RISO i Quality System
Dimensions When in use: 1280 mm (W) x 655 mm (D) x 515 mm (H)
When in storage: 665 mm (W) x 655 mm (D) x 505 mm (H)
Required Space 1280 mm (W) x 1255 mm (D) x 845 mm (H)
Weight*3 Approx. 65 kg
Safety Standards IEC-60950-1 compliant, indoor, pollution degree 2*4, at altitudes of 2000 m or lower
Notes
  • Please note that due to improvements and changes to the machine, some images and explanations in this content may not correspond to your machine.
  • Specifications are subject to change without prior notice.
  • *1 If the width of the paper surpasses 277 mm, the horizontal print position adjustment width narrows depending on the width of the paper.
  • *2 To switch between 100-120 V and 220-240 V, contact your dealer (or authorized service representative).
  • *3 The weight does not include the ink and master.
  • *4 The pollution degree of the usage environment due to dirt and dust in the air. Degree "2" corresponds to a general indoor environment.
