ComColor black FW1230 Specs

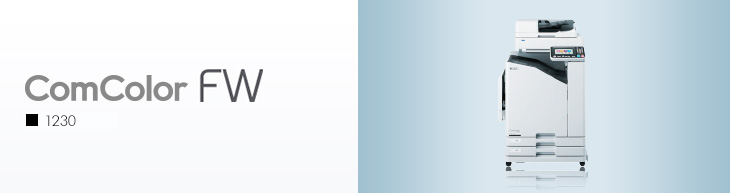

ComColor FW 1230

Specifications

  FW1230
Print Type Line-type inkjet system
Ink Type Oil-based pigment ink (Black)
Print Resolution Standard: 600 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Number of Gray Levels For K color (3 gray levels)
Data Processing Resolution Standard: 600 dpi × 600 dpi
Warm-up Time 2 min. 30 sec. or less (at room temperature of 23℃ (73.4℉))
First Print Time*1 5 sec. or less (A4 long-edge feed)
First Copy Time*1 7 sec. or less (A4 long-edge feed)
Continuous Print Speed*2*3 A4 long-edge feed Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm)
Letter long-edge feed Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm)
A4 short-edge feed Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm)
Letter short-edge feed Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm)
B4 (JIS) short-edge feed Simplex: 76 ppm Duplex: 34 sheets/minute (68 ppm)
Legal short-edge feed Simplex: 76 ppm Duplex: 34 sheets/minute (68 ppm)
A3 short-edge feed Simplex: 66 ppm Duplex: 32 sheets/minute (64 ppm)
Ledger short-edge feed Simplex: 65 ppm Duplex: 32 sheets/minute (64 ppm)
Paper Size Standard Tray Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″)*11
Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″)
Feed Tray Maximum: 297 mm × 432 mm (11 11/16″ × 17″)
Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″)
Printable Area Maximum: 310 mm × 544 mm (12 3/16″ × 21 13/32″)
Guaranteed Print Area*4 Standard: Margin width of 5 mm (7/32″)
Maximum: Margin width of 3 mm (1/8″)
Paper Weight Standard Tray Simplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond)
Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) for A4 and Letter
46 gsm to 104 gsm (12-lb bond to 28-lb bond) for Ledger, A3, Legal, and B4
Feed Tray Simplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
Duplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
Paper Tray Capacity Standard Tray Height up to 110 mm (4 5/16″)
Feed Tray Height up to 56 mm (2 3/16″) (× 2 trays)
Output Tray Capacity Height up to 56 mm (2 3/16″)
PDL (Page Description Language) RISORINC/C Ⅳ
Supported Protocols TCP/IP, HTTP, HTTPS (TLS), DHCP, ftp, lpr, IPP, SNMP, Port 9100 (RAW port), IPv4, IPv6, IPsec
Supported Operating Systems Standard Microsoft®: Windows Vista® (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 10 (32-bit/64-bit),
Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2016 (64-bit)
Optional*5 Mac: Mac OS v10.8 (Mountain Lion), v10.9 (Mavericks), v10.10 (Yosemite), v10.11 (El Capitan), v10.12 (Sierra)
Linux (compatible with PPD only)
Network Interface Ethernet 1000BASE-T, 100BASE-TX, 10BASE-T
Memory Capacity 4GB
Hard Disk*6 Capacity 500GB
Available Space Approx. 430GB
Operating System Linux
Power Source AC 100-240 V, 10.0-5.0 A, 50-60 Hz
Power Consumption Max. 1,000W
Ready*7: 150 W or less
Sleep*8: 4 W or less
Stand-by: 0.5 W or less
Operating Noise Max. 65 dB (A) A4 long-edge feed (Simplex) at the maximum print speed
Operating Environment Temperature: 15℃ to 30℃ (59℉ to 86℉)
Humidity: 40% to 70% RH (non-condensing)
Dimensions (W × D × H) In use: 1,030 mm × 725 mm × 1,115 mm (40 19/32″ × 28 9/16″ × 43 29/32″) With cover and tray closed: 775 mm × 705 mm × 970 mm (30 17/32″ × 27 25/32″ × 38 7/32″)
Weight Approx. 132 kg (292 lb)
Safety Information IEC60950-1 compliant, Indoor, pollution degree 2*9, At altitudes of 2,000 m or lower
Required Space (W × D × H)*10 1,305 mm × 1,215 mm × 1,115 mm (51 13/32″ × 47 27/32″ × 43 29/32″)

Specifications are subject to change without notice.

  • *1:Within 10 minutes after the last print job.
  • *2:When using plain paper or recycled paper (85 gsm (23-lb bond)), and density setting (Standard) 3 (Standard) Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)].
  • *3:The continuous print speed varies depending on the type of optional output equipment connected.
  • *4:The margin when printing envelopes is 10 mm (3/8″). The guaranteed area when printing images is the area enclosed within 5 mm (7/32″) of the edges of the paper.
  • *5:Optional PS kit is required.
  • *6:One gigabyte (GB) is calculated as 1 billion bytes.
  • *7:Without printing and temperature adjustment operation.
  • *8:When setting [Power Consumption (in sleep)] to [Low].
  • *9:The pollution degree of the usage environment due to dirt and dust in the air. Degree”2” corresponds to a general indoor environment.
  • *10:With the front cover open and the operation panel in the upright position.
  • *11:When using duplex print: 340 mm × 460 mm (13 3/8″ × 18 3/32″)
