ComColor GN Accessories

Banner of ComColor GN Ultra High-Speed Full-Color Inkjet Printers on neutral background

ComColor GN Accessories Specification

Scanner HS10000

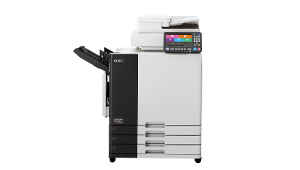

Front view of RISO ComColor GN9830 printer with scanner unit.

  • Auto feeder enables simultaneous duplex scanning
  • Scan speeds up to 135 ipm (simplex) and 200 ipm (duplex)
  • Copy speeds up to 135 ppm (simplex) and 180 ppm (duplex) for GN9830
  • Maximum 200-sheet loading capacity
  • Scan sizes up to A3

Specification

Type Flatbed Scanner with Automatic Document Feeder (ADF)
Scanning Modes Copy mode: Color, Monochrome, Auto, Cyan, Magenta
Scan mode: Color, Monochrome, Auto, Grayscale
Maximum Scanning Area 297 mm × 432 mm (11 11/16" × 17")
Original Size Maximum: 297 mm × 432 mm (11 11/16" × 17")
Minimum: 90 mm × 148 mm (3 17/32" × 5 27/32")
Scanning Resolution 600 dpi × 600 dpi
ADF Type Single-pass duplex scanning
Paper Weight 38 gsm to 220 gsm (10-lb bond to 59-lb bond)
Original Capacity Max. 200 sheets: 80 gsm (21-lb bond)
Height up to 22 mm (3/4")
Copy Functions Writing Resolution Standard: 300 dpi × 300 dpi (Black only: 600 dpi × 600 dpi)
Fine: 300 dpi × 600 dpi (Black only: 600 dpi × 600 dpi)
First Copy Time Monochrome/Color: 7 sec. or less (A4 LEF / Letter LEF)
LEF stands for Long Edge Feed.
Continuous Copy Speed Using ADF (A4 LEF / Letter LEF):
Simplex: 135 ppm
Duplex: 180 ppm (GN9830)
160 ppm (GN7630)
Scaling 50%-200%
Continuous Copy Count 9,999
Non-printable Area*1 Standard: 3 mm (1/8") margin per edge
Maximum: 1 mm (3/64") margin per edge
Scan Functions Color Bit Depth 10-bit input / 8-bit output per RGB channel
Scanning Speed*2 Monochrome/Color: Simplex 135 ipm / Duplex 200 ipm
Output Resolution 600 dpi, 400 dpi, 300 dpi, 200 dpi
Scaling 200 dpi / 300 dpi: 50%-200%
400 dpi / 600 dpi: 100% only
Network Interface*3 Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Scan Destinations*3 Internal SSD, Network Folder, USB flash drive, E-mail, Cloud
File Format*3 Monochrome: TIFF, PDF, PDF/A
Grayscale/Color: TIFF, JPEG, PDF, PDF/A
Power Source AC 100 V-240 V, 50 Hz-60 Hz, 1.2 A-0.6 A
Power Consumption Max. 100 W
Dimensions (W × D × H) 645 mm × 600 mm × 275 mm (25 13/32" × 23 5/8" × 10 13/16")
Required Space with Printer (W × D × H) 1,275 mm × 1,345 mm × 1,710 mm (50 3/16" × 52 15/16" × 67 5/16")
Weight Approx. 32 kg (70.6 lb)
  • *1:Guaranteed image area is within 3 mm (1/8") from the edge. Image quality is not guaranteed between 1 mm and 3 mm. Margin for envelopes: 10 mm (3/8") per edge.
  • *2:Conforming to scESAT30secA of ISO17991
  • *3:Via the internal host controller

Face Down Finisher G10

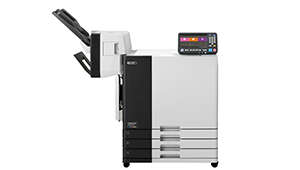

Front view of RISO ComColor GN9830 printer with Face Down Finisher.

  • Supports high-speed printing at 180 ppm (GN9830)
  • Offset stacking and stapling of up to 50 sheets (100 pages)
  • Maximum 1,000-sheet loading capacity

Specification

Type External Unit
Finishing Functions Offset stacking, staple
Paper Size Without offset Maximum: 340 mm × 550 mm (13 3/8" × 21 5/8")
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32")
Offset output Standard size: 182 mm × 257 mm-297 mm × 431.8 mm
(7 3/16" × 10 1/8"-11 11/16" × 17")
Custom size: 131 mm × 148 mm-305 mm × 550 mm
(5 3/16" × 5 27/32"-12" × 21 5/8")
Paper Weight 46 gsm to 210 gsm (12-lb bond to 56-lb bond)
Tray Capacity Height up to 108 mm (4 1/4")
Staple Capacity 50 sheets: A4, A4 LEF, B5 (JIS), B5 (JIS) LEF, Letter, Letter LEF
25 sheets: A3, B4 (JIS), Ledger, Legal, Foolscap
When using plain or recycled paper (85 gsm / 23-lb bond).
LEF stands for Long Edge Feed.
Stapling Paper Size A3, B4 (JIS), A4, A4 LEF, B5 (JIS), B5 (JIS) LEF, Ledger, Legal, Letter, Letter LEF, Foolscap
Paper Weight for Staple 52 gsm to 210 gsm (14-lb bond to 56-lb bond)
(plain paper, recycled paper)
Staple Position 1 at front side (angle stapling)
1 at rear side (angle stapling)
2 at center (parallel stapling)
Power Source AC 100 V-240 V, 50 Hz-60 Hz, 1.2 A-0.6 A
Power Consumption Max. 110 W
Dimensions (W × D × H) 760 mm × 680 mm × 585 mm (29 15/16" × 26 25/32" × 23 1/32")
Required Space with Printer
(W × D × H)		 1,440 mm × 1,240 mm × 1,345 mm (56 11/16" × 48 13/16" × 52 15/16")
Weight Approx. 30 kg (66 lb)

Additional 2000 Sheet Feeder FG20

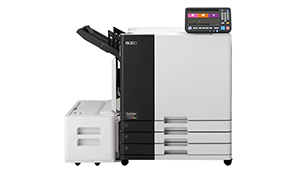

Front view of RISO ComColor GN9830 printer with Additional 2000 Sheet Feeder FG20

  • Maximum capacity of 2,000 A4 sheets (A4 long-edge feed)
  • Paper replenishable even during printing

Specification

Type External Paper Tray Unit
Paper Size A4 LEF, B5 (JIS) LEF, Letter LEF, 16K LEF
LEF stands for Long Edge Feed.
Paper Type and Weight 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
(plain paper, recycled paper)
Tray Capacity Height up to 220 mm (8 21/32")*1
Power Source Power supplied from the main unit
Dimensions (W × D × H) 415 mm × 600 mm × 390 mm (16 11/32" × 23 5/8" × 15 11/32")
Required Space with Printer
(W × D × H)		 1,480 mm × 1,240 mm × 1,175 mm (58 9/32" × 48 13/16" × 46 1/4")
Weight Approx. 29 kg (64 lb)
  • *1:When using plain or recycled paper (85 gsm / 23-lb bond).

High Capacity Feeder G30

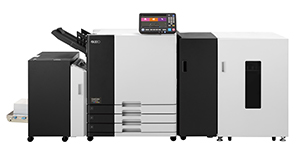

Product photo of RISO ComColor GN9830 with High Capacity Feeder G30 on the left side

  • *Left side
  • Feeds 4,000 sheets without replenishing
  • Compatible with thicker paper and envelopes, as well as A3/ledger-size paper
  • Boost maximum capacity to 5,500 sheets using multiple trays for continuous feeding* Height up to 440 mm (17 11/32")

Specification

Type External Unit
Paper Size Maximum: 340 mm × 465 mm (13 3/8" × 18 5/16")
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32")
Paper Type and Weight 46 gsm-210 gsm (12-lb bond-56-lb bond)
(plain paper, recycled paper, envelopes, postcards)
Tray Capacity Height up to 440 mm (17 5/16")
Power Source AC 100 V-240 V, 50 Hz-60 Hz, 1.0 A-0.5 A
Power Consumption Max. 100 W
Ready*1: 30 W or less
Sleep*2: 0.5 W or less
Off mode: 0.5 W or less
Operating Noise Max. 68 dB (A) A4 LEF (Simplex) at the maximum print speed
Dimensions (W × D × H) 790 mm × 630 mm × 740 mm (31 3/32" × 24 13/16" × 29 1/8")
Required Space with Printer
(W × D × H)		 1,565 mm × 1,240 mm × 1,175 mm (61 19/32" × 48 13/16" × 46 1/4")
Weight Approx. 68 kg (150 lb)
  • *1:Without printing operation
  • *2:When setting [Power Consumption (in Sleep)] to [Low]

High Capacity Stacker G30

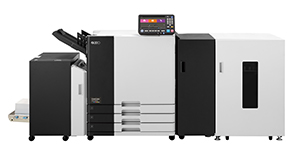

Product photo of RISO ComColor GN9830 with High Capacity Stacker G30 on the right side

  • *Right side
  • Increases printer capacity by 4,000 sheets, reducing need for intervention by operator
  • Stack face up or face down
  • Offset stacking to facilitate high-volume stacking
  • Wheeled stacker cart simplifies movement of printed material

Specification

Type External Unit
Finishing Functions Collating, stacking (offset)
Paper Size Maximum: 340 mm × 460 mm (13 3/8" × 18 3/32")
Minimum: 90 mm × 148 mm (3 17/32" × 5 13/16")
Offset: 90 mm × 182 mm-340 mm × 432 mm
(3 17/32" × 7 5/32"-13 3/8" × 17")
(Envelopes not supported)
Paper Type and Weight 46 gsm-210 gsm (12-lb bond-56-lb bond)
(plain paper, recycled paper, postcards)
Tray Capacity Collating: Height up to 440 mm (17 5/16")*1
Offset: Height up to 405 mm (15 15/16")*2
Power Source AC 100 V-240 V, 50 Hz-60 Hz, 1.4 A-0.7 A
Power Consumption Max. 140 W
Ready*3: 30 W or less
Sleep*4: 0.5 W or less
Off mode: 0.5 W or less
Operating Noise Max. 68 dB (A) A4 LEF (Simplex) at the maximum print speed
Dimensions (W × D × H) 1,000 mm × 700 mm × 960 mm (39 3/8" × 27 9/16" × 37 25/32")
Required Space with Printer
(W × D × H)		 2,210 mm × 1,315 mm × 1,175 mm (87" × 51 3/4" × 46 1/4")
Weight Approx. 128 kg (282.6 lb)
  • *1:Height up to 110 mm (4 5/16") for A5, postcards, envelopes, non-regular size paper
  • *2:Not applicable to A5, postcards, envelopes, non-regular size paper, etc.
  • *3:Without printing operation
  • *4:When setting [Power Consumption (in Sleep)] to [Low]

Multifunction Finisher FG20, Folder Unit FG20

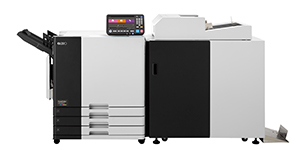

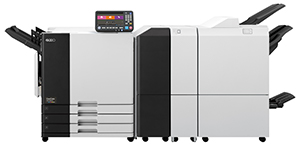

Front view of RISO ComColor GN9830 printer with Multifunction Finisher FG20 and Folder Unit FG20.

  • Top-tray printing at main unit speed of 180 ppm*
  • In-line printing, folding, and book binding
  • Enables production of over 2 60-page A4 duplex saddle-stitched booklets per minute
  • *GN9830

Specification

Multifunction Finisher FG20

Type External Unit
Tray Type Top tray, Stacking tray, Booklet tray
Finishing Functions Offset output, Staple, Punch, Booklet binding, Bi-fold
Paper Size Top Tray Maximum: 330 mm × 488 mm (13" × 19 7/32")
Minimum: 100 mm × 148 mm (3 15/16" × 5 27/32")
Stacking Tray Maximum: 330 mm × 488 mm (13" × 19 7/32")
Minimum: 148 mm × 148 mm (5 27/32" × 5 27/32")
Booklet Tray Maximum: 330 mm × 488 mm (13" × 19 7/32")
Minimum: 182 mm × 257 mm (7 3/16" × 10 1/8")
Paper Weight Top Tray / Stacking Tray 52 gsm to 210 gsm (14-lb bond to 56-lb bond)
Booklet Tray 60 gsm to 90 gsm (16-lb bond to 24-lb bond)
(cover: 90 gsm to 210 gsm (24-lb bond to 56-lb bond))
Tray Capacity Top Tray Height up to 50 mm (1 31/32")
Stacking Tray Height up to 200 mm (7 7/8")
Booklet Tray 20 copies (15 sheets for a copy)
Stapling Capacity*1 100 sheets: A4, A4 LEF, B5 (JIS) LEF, Letter, Letter LEF
65 sheets: A3, B4 (JIS), Ledger, Legal, Foolscap
LEF stands for Long Edge Feed.
Paper Size Maximum: 297 mm × 432 mm (11 11/16" × 17") (equivalent to A3)
Minimum: 182 mm × 148 mm (7 5/32" × 5 27/32")
Staple Position 1 at front side (angle stapling),
1 at rear side (angle stapling*2, parallel stapling),
2 at center (parallel stapling)
Punching Number of Punches 2 holes, 3 holes
2 holes, 4 holes
Paper Size 2 holes: A3, B4 (JIS), A4, A4 LEF, B5 (JIS) LEF, Ledger, Legal, Letter, Letter LEF
3 holes: A3, B4 (JIS), A4 LEF, B5 (JIS) LEF, Ledger, Letter LEF
4 holes: A3, A4 LEF, Ledger, Letter LEF
LEF stands for Long Edge Feed.
Paper Weight 52 gsm to 210 gsm (14-lb bond to 56-lb bond)
Booklet Making Capacity*1*3 Saddle stitch: 20 sheets (80 pages)
Bi-fold: 5 sheets (20 pages)
Power Source AC 100-240 V, 50-60 Hz, 3.5-1.9 A
Power Consumption Max. 280 W (350 W with Folder Unit)
Operating Noise 68 dB (A) or less
Dimensions (W × D × H) 1,205 mm × 735 mm × 1,215 mm (47 7/16" × 28 15/16" × 47 27/32")
Required Space with Printer (W × D × H) With folder unit 2,655 mm × 1,325 mm × 1,215 mm (104 17/32" × 52 5/32" × 47 27/32")
Without folder unit 2,415 mm × 1,325 mm × 1,215 mm (95 3/32" × 52 5/32" × 47 27/32")
Weight Approx. 146 kg (322 lb)
  • *1:When using plain or recycled paper (85 gsm / 23-lb bond).
  • *2:Rear-side angle stapling is only available for A4 LEF and A3.
  • *3:Includes an added cover.

Folder Unit FG20

Paper Size Z-fold*1 A3, B4 (JIS), Ledger
Tri-fold (Outer Tri-fold / Inner Tri-fold) A4, Letter
Paper Weight 60 gsm to 90 gsm (16-lb bond to 24-lb bond)
(plain paper, recycled paper)
Tri-fold Output Tray Capacity*2 Approx. 30 sheets
Number of Sheets per Fold 1 sheet
Dimensions (W × D × H) 235 mm × 735 mm × 1,005 mm (9 1/4" × 28 15/16" × 39 9/16")
Weight Approx. 52 kg (115 lb)
  • *1:When printouts are output to the stacking tray, maximum stacking capacity varies by paper size. (A3/Ledger paper: 80 sheets, B4 (JIS) paper: 60 sheets)
  • *2:When using plain or recycled paper (85 gsm / 23-lb bond).

RISO Auto-Control Stacking TrayⅡ·Wide Stacking Tray·Face Up Stacking Tray

Product photo of RISO Auto-Control Stacking Tray II

The paper guides automatically open to the correct width to match the paper in use.

Product photo of RISO Wide Stacking Tray

Product photo of RISO Face Up Stacking Tray

Specification

Model Name RISO Auto-Control Stacking Tray II Wide Stacking Tray Face Up Stacking Tray
Paper Size Maximum: 320 mm × 432 mm (12 9/16" × 17")
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32") 		Maximum: 340 mm × 550 mm (13 3/8" × 21 5/8")
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32") 		Maximum: 320 mm × 432 mm (12 9/16" × 17")
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32")
Tray Capacity*1 1,000 sheets
Dimensions when connected to Printer
(W × D × H)		 In use 1,745 mm × 725 mm × 1,175 mm
(68 11/16" × 28 17/32" × 46 1/4")		 1,875 mm × 725 mm × 1,175 mm
(73 13/16" × 28 17/32" × 46 1/4")		 1,750 mm × 725 mm × 1,175 mm
(68 29/32" × 28 17/32" × 46 1/4")
In storage 1,370 mm × 705 mm × 1,045 mm
(53 29/32" × 27 3/4" × 41 1/8")		 1,320 mm × 705 mm × 1,015 mm
(51 15/16" × 27 3/4" × 39 15/16")		 1,330 mm × 705 mm × 1,015 mm
(52 3/8" × 27 3/4" × 39 15/16")
Required Space with Printer 1,745 mm × 1,240 mm × 1,175 mm
(68 11/16" × 48 13/16" × 46 1/4")		 1,875 mm × 1,240 mm × 1,175 mm
(73 13/16" × 48 13/16" × 46 1/4")		 1,750 mm × 1,240 mm × 1,175 mm
(68 29/32" × 48 13/16" × 46 1/4")
Weight Approx. 8 kg (17 lb) Approx. 5 kg (11 lb) Approx. 3 kg (6.7 lb)
  • *1:When using plain paper (85 gsm (23-lb bond)).

Perfect Binder G10

Front view of RISO ComColor GN9830 printer with Multifunction Finisher FG20 and Folder Unit FG20.

  • Controls in-line finishing and binding
  • Enables production of up to 68 100-page A4-sized books per hour
  • Accommodates book thicknessesup to 600 pages
  • Handles binding from 1.5 mm to 30mm (approx. 15 to 300 sheets)
  • Compatible with Adobe® PDFand Microsoft® Office file formats,enhancing pre-print process efficiency
  • Automatic, individual trimming of books to size

Specification

Type Perfect Binder
Finishing Type Perfect Binding
Warming-Up Time 13 min. or less (at a room temperature of 23°C)
Binding Speed*1 68 booklets/hour
Paper Size Body page (long-edge feed): A4, B5 (JIS), A5, Letter
Cover sheet*2
When cutting off the surplus part:
A4: 297 mm × 430-465 mm (11 11/16" × 16 15/16"-18 5/16")
B5: 257 mm × 374-409 mm (10 1/8" × 14 23/32"-16 3/32")
A5: 210 mm × 307-342 mm (8 9/32" × 12 3/32"-13 15/32")
Letter: 279.4 mm × 441.8-476 mm (11" × 17 13/32"-18 3/4")
When leaving the surplus part:
A4: 297 mm × 421.5-460 mm (11 11/16" × 16 19/32"-18 1/8")
B5: 257 mm × 365.5-432 mm (10 1/8" × 14 3/8"-17")
A5: 210 mm × 298.5-398 mm (8 9/32" × 11 3/4"-15 21/32")
Letter: 279.4 mm × 433.3-466 mm (11" × 17 1/16"-18 11/32")
Paper Weight Standard Tray Body page: Plain paper, recycled paper
52 gsm to 128 gsm (14-lb bond to 34-lb bond)
(For A5 long-edge feed, 64 gsm to 128 gsm (17-lb bond to 34-lb bond))
Cover*3: Plain paper, recycled paper, high-quality paper
80 gsm to 210 gsm (21-lb bond to 56-lb bond)
Feed Tray Body page: Plain paper, recycled paper
52 gsm to 104 gsm (14-lb bond to 28-lb bond)
(not available with A5 long-edge feed)
Cover*3: Plain paper, recycled paper
80 gsm to 104 gsm (21-lb bond to 28-lb bond)
Body Sheet Stacker Body page: Plain paper, recycled paper
52 gsm to 128 gsm (14-lb bond to 34-lb bond)
Cover Sheet Inserter Cover*3: Plain paper, recycled paper, high-quality paper
80 gsm to 210 gsm (21-lb bond to 56-lb bond)
Binding Thickness
(Binding Amount of Sheets)		 1.5 mm-30 mm (1/16"-1 3/16")
15-300 sheets
When using plain paper (85 gsm (23-lb bond))
Binding amount of sheets varies depending on the paper type.
Binding Side Long side only
Output Capacity*4 30 booklets (Max. 50 sheets per booklet)
Essential Margin*5 Body page: Min. 5 mm (3/16")
Cover: Whole back side of spine, min. 5 mm (7/32") on Cover 2 and Cover 3
Power Source Perfect Binder G10 (120) AC 100 V-120 V, 50 Hz-60 Hz, Max. 12.0 A
Perfect Binder G10 (200) AC 220 V-240 V, 50 Hz-60 Hz, Max. 6.0 A
Power Consumption Max. 1,500 W
Operating Noise*6 Max. 70 dB or less (when binding)
Dimensions (W × D × H) 1,290 mm × 675 mm × 1,125 mm (50 25/32" × 26 9/16" × 44 9/32")
Required Space with Printer (W × D × H) 2,755 mm × 1,240 mm × 1,175 mm
(108 7/16" × 48 13/16" × 46 1/4")
Weight Approx. 220 kg (485 lb)
  • *1:Speed is calculated based on the time taken to produce the 5th to 10th booklets.
    Conditions: IJ paper, standard density, 300 dpi resolution,
    body page: A4, 100 pages (duplex), cover sheet: 1 page (simplex).
  • *2:The required cover length varies depending on the spine thickness. The cover sheet must be long enough to wrap around the entire body.
  • *3:If the thickness of the booklet (spine) will be 20 mm (25/32") or more, the use of paper that is 105 gsm (28-lb bond) or heavier is recommended.
  • *4:When using IJ paper (85 gsm / 23-lb bond)
  • *5:• Two-page spread on the body page• Two-page spread on the cover

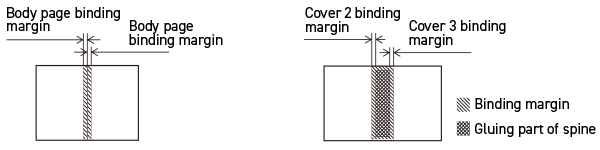

    Diagram of binding margin for body pages and cover with gluing part of spine

  • *6:180 ppm when connected to the printer, binding A4 long-edge feed

Wrapping Envelope Finisher G10

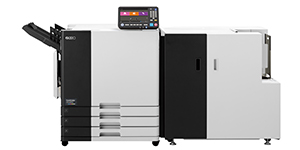

Front view of RISO ComColor GN9830 printer with Wrapping Envelope Finisher G10

  • In-line print-to-mail solution
  • Insert up to six A4 sheets
  • Approx. 2,600 completed pieces per hour
  • Reduces enclosing errors and protects confidentiality

Specification

Type In-Line Sealed Mail Making System
Finishing Type Sealed mail making
Dedicated Paper for Envelopes Wrapping Envelope Form A:
233 mm × 296 mm (9 3/16" × 11 21/32")
Approx. 105 gsm (28-lb bond)		 Wrapping Envelope Form B:
233 mm × 391 mm (9 3/16" × 15 13/32")
Approx. 105 gsm (28-lb bond)
Insert Paper Size A4 (210 mm × 297 mm), B5 (JIS) (182 mm × 257 mm)
Paper Type and Weight Standard Tray Plain paper, recycled paper 46 gsm to 120 gsm (12.2-lb bond to 31.9-lb bond) paper
Feed Tray 52 gsm to 104 gsm (14-lb bond to 28-lb bond) paper
Printable Area Dedicated Paper for Envelopes Form A Maximum: 212 mm × 217 mm
Form B Maximum: 212 mm × 311 mm
Guaranteed Print Area for Inserts Standard: Margin width of 3 mm (1/8")
Maximum: Margin width of 1 mm (3/64")
Maximum Load of the Mail Stacker Height up to 310 mm (12 7/32") (Approx. 110 envelopes: using 85 gsm / 23-lb bond IJ paper with 1 tri-folded insert)
Number of Inserts 46 gsm to 59 gsm
(12.2-lb bond to 15.7-lb bond)		 6 sheets or less
60 gsm to 80 gsm
(16-lb bond to 21.3-lb bond)		 5 sheets or less
81 gsm to 100 gsm
(21.5-lb bond to 26.6-lb bond)		 4 sheets or less
101 gsm to 120 gsm
(26.9-lb bond to 31.9-lb bond)		 3 sheets or less
Adhesion Method Mail short-edge part Pressurized adhesion method to the pressure-sensitive adhesive coated area.
Mail long-edge part Wet coating adhesion method to the remoistening adhesive coated area.
Remoistening Adhesive Supplementation Method Replenish from the water supply tank (removal possible)
Water Supply Tank Capacity 400 ml
Water Tank Capacity Inside Printer 480 ml
Finished Product Mail Size Wrapping Envelope Form A: 233 mm × 110 mm (9 3/16" × 4 11/32")
Wrapping Envelope Form B: 233 mm × 158 mm (9 3/16" × 6 7/32")
Processing Speed*1 Approx. 2,631 envelopes/hour
Power Source AC 100 V-240 V, 50 Hz-60 Hz, 3.0 A-1.5 A
Power Consumption Max. 250 W
Ready: 40 W or less
Off mode: 0.5 W or less
Operating Noise*2 68 dB (A) or less
Dimensions (W × D × H)*3 990 mm × 710 mm × 960 mm (38 31/32" × 27 15/16" × 37 25/32")
Required Space with Printer (W × D × H)*3 2,270 mm × 1,280 mm × 1,175 mm (89 3/8" × 50 3/8" × 46 1/4")
Weight*3 Approx. 161 kg
  • *1:When using ComColor GN9830: When inserting one sheet for A4 simplex printing.
  • *2:When connected to the printer and sealing an envelope form containing one insert.
  • *3:Excluding the storage case.

ComColorExpress FS3000C

Front view of RISO ComColorExpress FS3000C print controller

  • Enables direct processing of PDF files
  • Supports variable data printing operations
  • Used in conjunction with Command WorkStation®, it enables intuitive local or remote management of Fiery DrivenTM printers

Specification

CPU Intel® Core™ i5-12500
Memory Capacity 16 GB
Storage Capacity 240 GB NVMe SSD / 1 TB SATA HDD
Operating System Windows® 10 IoT Enterprise 2021 LTSC
Network Interface 2 ports (Ethernet: 1000BASE-T)
Power Source AC 100-240 V, 50-60 Hz, 7-3.5 A
Power Consumption Max. 350 W / Ready 100 W
Dimensions (W × D × H) 235 mm × 464 mm × 528 mm (9 1/4" × 18 9/32" × 20 25/32")
Weight Approx. 17 kg (37.5 lb)
PDL (Page Description Language) PostScript 3, PDF (1.3, 1.4, 1.5, 1.6, 1.7, 2.0), PDF/X, PDF/VT, EPS, FreeForm, FreeForm2, FreeForm Plus, Enhanced PCL 6 / PCL 5c, TIFF 6.0, PPML 3.0, Creo VPS, Fiery® JDF 1.9
Supported Protocols TCP/IP, LPR, IPP, Port 9100, FTP, SMB, Email (IMAP/POP3), WSD, USB, HTTP, HTTPS (TLS), SNMP, LDAPv3, Bonjour, IPv4, IPv6, IPSec
Installed Fonts PS: 138 fonts
Supported Client Operating Systems*1 Windows 11
Windows Server® 2016, 2019, 2022, 2025
macOS 13, 14, 15, 26
  • *1:Supported OS versions are subject to change. For the latest information, please visit the RISO website or contact your local sales representative.

ComColorExpress RS1300C

  • *RIP software simplifies and streamlines transactional printing workflow, enhancing productivity

Specification

PDL (Page Description Language) PostScript 3*1, PDF (1.7)*1, PCL 5c, PCL 6 (PCL XL), TIFF (6.0), PPML (2.1)
Supported Protocols TCP/IP, HTTP, HTTPS (TLS 1.2), DHCP, FTP, SMBv3, NetBIOS, LPR, IPP, Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1), SNMP
Installed Fonts PS: 144 fonts
PCL: 80 fonts
  • *1:Genuine Adobe engine.

PS Kit FG10

PS Kit supports a variety of operating systems, and PDF files can be printed directly from USB flash drives.

  • *When installed, enables functions such as Tray Selection Per Page, Color Profile, and Form Overlay, enhancing efficiency

Specification

Type RIP option
PDL (Page Description Language) PostScript 3*1, PDF (1.7)*1, PCL 5c, PCL 6 (PCL XL), TIFF (6.0)
Supported Protocols TCP/IP, HTTP, HTTPS (TLS), DHCP, FTP, LPR, IPP,
SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1)
Installed Fonts PS: 136 Roman fonts and 2 Japanese fonts
PCL: 88 Roman fonts
  • *1:Genuine Adobe engine.

IC Card Reader Activation Kit

The optional IC Card Reader Activation Kit enables user management using an IC card*1.

Specification

Applicable Card*2 ISO 14443 Type A / Type B, FeliCa®, MIFARE®
Power Source for IC Card Reader Power supplied from the USB port
  • *1:IC Card Reader and IC cards are required.
  • *2:Applicable IC card types vary depending on the IC card reader connected.

Envelope Feed Kit/Card Feed Kit

Compatible with paper weight 50 gsm to 120 gsm.

Allows use of thicker stock such as cards and envelopes.

Specification

Model Name Envelope Feed Kit Card Feed Kit
Paper Size Maximum: 270 mm × 382 mm (10 5/8″ × 15 1/16″)
Minimum: 90 mm × 148 mm (3 9/16″ × 5 13/16″)		 Maximum: 160 mm × 218 mm (6 5/16″ × 8 9/16″)
Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″)
Paper Weight 50 gsm to 120 gsm (13-lb bond to 32-lb bond) 100 gsm to 400 gsm (27-lb bond to 107-lb bond)

,RISO ComColor and ComColorExpress are trademarks or registered trademarks of RISO KAGAKU CORPORATION in the United States and other countries. Fiery is a trademark of Fiery, LLC. Adobe and PostScript are either registered trademarks or trademarks of Adobe in the United States and/or other countries. macOS and Bonjour are trademarks of Apple Inc. Windows and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Intel and Intel Core are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. FeliCa is a registered trademark or trademark of Sony Group Corporation or its affiliates. FeliCa is a contactless IC card technology developed by Sony Corporation. MIFARE is a registered trademark of NXP B.V. Other corporate names and/or trademarks are either registered trademarks or trademarks of each company, respectively.

For inquiries regarding sales and products. Contact Us

Top of this page
