HOME > Products > Digital Duplicator > SJ series > SJ9490/SJ9390

Digital
Duplicator

SJ

9-90series

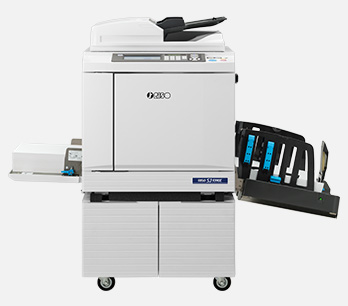

SJ9490/SJ9390

  • 200
    ppm
  • QUICK
    MASTER
    MAKING
  • 1000
    sheets
  • LOW
    COST
  • COLOR
    TOUCH
    PANEL
  • USB
    DIRECT
    PRINT
  • RISO
    CONSOLE
  • 600 dpi
    ×
    600 dpi
  • IC CARD
    SECURITY
  • USAGE
    REPORT
  • ECO
  • RICE BRAN
    OIL INK

Specifications

PRINT

  SJ9390 SJ9490
Master Making Method High-speed digital master-making
Original Type Book or sheet
Master Making Time*1 Quick Master
Making mode		 Approx. 14 seconds (A4, long edge feed)
Approx. 18 seconds (A4, short edge feed)
 Approx. 15 seconds
(Letter paper, long edge feed)
Approx. 17 seconds
(Letter paper, short edge feed)
Normal Master
Making mode		 Approx. 16 seconds (A4, long edge feed)
Approx. 20 seconds (A4, short edge feed)		 Approx. 17 seconds
(Letter paper, long edge feed)
Approx. 19 seconds
(Letter paper, short edge feed)
Printing Method Fully automatic printing
Scanning Resolution 600 dpi × 600 dpi
Printing Resolution Quick Master
Making mode		 600 dpi × 400 dpi
Normal Master Making mode 600 dpi × 600 dpi
Original Type Book (10 kg [22 lb] or less) or sheet
Original Paper Weight
(for auto document feeder)		 Single-sided feeding 35 g/m2 to 157 g/m2 (9-lb bond to 42-lb bond)
Duplex-sided feeding 50 g/m2 to 157 g/m2 (13-lb bond to 42-lb bond)
Original Size Glass platen 50 mm × 90 mm to 307 mm × 432 mm
(1 31/32 inches × 3 17/32 inches to 12 3/32 inches × 17 inches)
Auto document feeder 69.8 mm × 148 mm to 300 mm × 432 mm
(2 3/4 inches × 5 13/16 inches to 11 13/16 inches × 17 inches)
Maximum Scanning Area 297 mm × 432 mm (11 11/16 inches × 17 inches)
Print Paper Weight
 46 g/m2 to 210 g/m2 (12-lb bond to 116-lb index)
Print Paper Size*2
 100 mm × 148 mm to 320 mm × 432 mm
(3 15/16 inches × 5 13/16 inches to 12 19/32 inches × 17 inches)
Maximum Printing Area 291 mm × 413 mm
(11 15/32 inches × 16 1/4 inches)		 291 mm × 425 mm
(11 15/32 inches × 16 23/32 inches)
Paper Feed Tray Stacking Capacity 1000 sheets*3 (stacking height of 110 mm [4 11/32 inches] or less)
Paper Receiving Tray Stacking Capacity 1000 sheets*3 (stacking height of 110 mm [4 11/32 inches] or less)
Print Speed*4 7 levels: 60, 80, 100, 120, 130, 160 and 200 sheets per minute
Print Position Adjustment
 Horizontal: ±15 mm (±19/32 inches)
Vertical: ±10 mm (±13/32 inches)
Image Processing Mode Line, Photo (Standard/Portrait), Duo (Standard/Line/Photo/Shadow off), Pencil (Darker/Lighter)
Print Reproduction Ratio
 Zoom (50% to 200%), Free, 100% reproduction ratio, Margin+ (90% to 99%), Enlargement (163%, 141%, 122%, 116%), Reduction (87%, 82%, 71%, 61%)
User Interface
 Color touch panel
Functions
 Image, Contrast, Size, Paper Size Detection, D-Feed Check, Dot Process, Contrast Adj, Tone Curve, Layout, Multi-Up Print, 2 Up, BookShadow, Top Margin Adj., Binding Margin Adj., Max. Scan, Ink Saving, Quick Master Making, Preview, ADF Semi-Auto*5, Storage, Overlay, Print Speed Adjustment, Print Density Adjustment, Print Position Adjustment, Interval, Renew Page, Auto Page Renewal, Rotate, Special PaperCtrl, Output reversal, Scanning Side -ADF*5, Paper Memory Print, Program, Job Separation*6, Slip sheet sorting, Job Memory, Reservation, Editor, Idling Action, Confidential, My Direct Access, Quick Print, MeterDisplay, ID Counter Report, Proof Copy, Direct Printing, USB Job List, Scanning Mode, Admin., Auto Sleep, Auto Power-OFF, Power-OFF Schedule, ECO mode, Protect, RISO iQuality System
Color Change Print drum (cylinder) replacement method
Ink Supply Full automatic (1000 ml/cartridge)
Master Supply/Disposal A3/Ledger drum (cylinder) Full automatic approx. 220 sheets per roll / Disposal capacity: approx. 100 sheets Full automatic approx. 215 sheets per roll / Disposal capacity: approx. 100 sheets
A4/Letter drum (cylinder) Full automatic approx. 373 sheets per roll / Disposal capacity: approx. 100 sheets
PC Interface USB2.0, Ethernet: 100BASE-TX/10BASE-T
Power Source SJ9390E: AC 220-240 V, 50-60 Hz <2.5 A>, SJ9390A (For Korea: AC 220 V, 60 Hz <2.5 A>, For other countries: AC 100-240 V, 50-60 Hz <5.0-2.5 A>) AC 100-240 V, 50-60 Hz <5.0-2.5 A>
Power Consumption Standard Max. 420 W, Ready: 50 W or lower, Sleep: (Standard) 5 W or lower, (Low) 0.5 W or lower, Power-OFF: 0.3 W or lower
Optional
Accessories
Connected*7		 Max. 430 W, Ready: 56 W or lower, Sleep: (Standard) 10 W or lower, (Low) 1.5 W or lower, Power-OFF: 0.3 W or lower
Dimensions (W × D*8 × H*9) In use 1420 mm × 705 mm × 1060 mm
(55 29/32 inches × 27 3/4 inches × 41 23/32 inches)
In storage 780 mm × 705 mm × 1060 mm
(30 23/32 inches × 27 3/4 inches × 41 23/32 inches)
Required Space (W × D × H*9) 1420 mm × 1310 mm × 1520 mm
(55 29/32 inches × 51 9/16 inches × 59 27/32 inches)
Weight*10 Approx. 112 kg (247-lb)
  • *1 Measurement value when set to 100% reproduction ratio.
  • *2 When the optional Wide Stacking Tray is installed, you can use paper up to a size of 340 mm × 555 mm
    (13 3/8 inches × 21 27/32 inches) by setting [Original/paper size]. Depending on the paper type and paper size, papers may not be aligned properly.
  • *3 When using the following weight of paper; 64 g/m2 to 80 g/m2 (17-lb bond to 21-lb bond)
  • *4 If the temperature of the inside of the print drum (cylinder) is less than 15℃ (59℉), [200ppm] is not usable. If the temperature of the inside of the print drum (cylinder) is less than 5℃ (41℉), [160ppm] is not usable.
  • *5 Usable when the optional auto document feeder is installed.
  • *6 Usable when the optional Job Separator is installed.
  • *7 When all the following optional accessories are installed. Auto Document Feeder, Job Separator and IC Card Reader.
  • *8 The depth includes the stabilizers for the dedicated rack.
  • *9 The height includes the dedicated rack.
  • *10 The weight does not include the ink, master roll, and rack.
  • Notes: Specifications are subject to change without notice.
