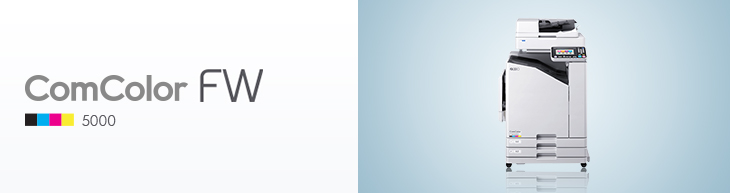

ComColor FW5000 Specs
- ComColor
FW Series - ComColor
FW5230 - ComColor
FW5231 - ComColor
FW5000 - ComColor
FW2230 - ComColor
black FW1230 - ComColor
FW Accessories
Specifications
| FW5000 | ||
|---|---|---|
| Print Type | Line-type inkjet system | |
| Ink Type | Oil-based pigment ink (Cyan/Magenta/Yellow/Black) | |
| Print Resolution | Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction) Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction) |
|
| Number of Gray Levels | For each CMYK color (11 gray levels) | |
| Data Processing Resolution | Standard: 300 dpi × 300 dpi Fine: 600 dpi × 600 dpi Line smoothing: 600 dpi × 600 dpi |
|
| Warm-up Time | 2 min. 30 sec. or less (at room temperature of 23℃ (73.4℉) | |
| First Print Time*1 | 5 sec. or less (A4 long-edge feed) | |
| First Copy Time*1 | 7 sec. or less (A4 long-edge feed) | |
| Continuous Print Speed*2*3 | A4 short-edge feed | Simplex: 90 ppm, Duplex: 45 sheets/minute (90 ppm) |
| Letter short-edge feed | Simplex: 90 ppm, Duplex: 45 sheets/minute (90 ppm) | |
| Legal short-edge feed | Simplex: 76 ppm, Duplex: 34 sheets/minute (68 ppm) | |
| Paper Size | Standard Tray | Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″)*10 Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″) |
| Feed Tray | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″) |
|
| Printable Area | Maximum: 210 mm × 544 mm (8 3/16″ × 21 13/32″) | |
| Guaranteed Print Area*4 | Standard: Margin width of 5 mm (7/32″) Maximum: Margin width of 3 mm (1/8″) |
|
| Paper Weight | Standard Tray | Simplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) for A4 and Letter 46 gsm to 104 gsm (12-lb bond to 28-lb bond) for Ledger, A3, Legal, and B4 |
| Feed Tray | Simplex : 52 gsm to 104 gsm (14-lb bond to 28-lb bond) Duplex : 52 gsm to 104 gsm (14-lb bond to 28-lb bond) |
|
| Paper Tray Capacity | Standard Tray | Height up to 110 mm (4 5/16″) |
| Feed Tray | Height up to 56 mm (2 3/16″) (× 2 trays) | |
| Output Tray Capacity | Standard | Height up to 56 mm (2 3/16″) |
| Page Description Language | RISORINC/C Ⅳ | |
| Supported Protocols | TCP/IP, HTTP, HTTPs, DHCP, ftp, lpr, IPP, SNMP, Port 9100 (RAW port), IPv4, IPv6, IPsec | |
| Supported Operating Systems | Standard | Microsoft®: Windows® 7 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit) |
| Optional*5 | Mac: Mac OS v10.8 (Mountain Lion), v10.9 (Mavericks), v10.10 (Yosemite), v10.11 (El Capitan), v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave) Linux® (compatible with PPD only) |
|
| Network Interface | Ethernet 1000BASE-T,100BASE-TX,10BASE-T | |
| Memory Capacity | 4GB | |
| Hard Disk*6 | Capacity | 500GB |
| Available Space | Approx. 430GB | |
| Operating System | Linux | |
| Power Source | AC 100-240 V, 10.0-5.0 A, 50-60 Hz | |
| Power Consumption | Maximum: 1,000 W Ready*7: 150 W or less Sleep*8: 2 W or less Stand-by: 0.4 W or less |
|
| Operating Noise | Max. 65 dB(A)A4 short-edge feed (Simplex) at the maximum print speed | |
| Operating Environment | Temperature: 15℃ to 30℃ (59℉ to 86℉) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions (W × D × H) | In use: 1,030mm × 725 mm × 1,115 mm (40 19/32″ × 28 9/16″ × 43 29/32″) With cover and tray closed: 775 mm × 705 mm × 970 mm (30 17/32″ × 27 25/32″ × 38 7/32″) |
|
| Weight | Approx. 135 kg (297 lb) | |
| Required Space (W × D × H)*9 | 1,305 mm × 1,215 mm × 1,115 mm (51 13/32″ × 47 27/32″ × 43 29/32″) | |
Specifications are subject to change without notice.
- *1:Within 10 minutes after the last print job.
- *2:When using plain paper and recycled paper (85 gsm (23-lb bond)), and density setting Standard. Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)].
- *3:The continuous print speed varies depending on the type of optional output equipment connected.
- *4:The margin when printing envelopes is 10 mm (3/8″). The guaranteed area when printing images is the area enclosed within 5 mm (7/32″) of the edges of the paper.
- *5:Optional PS Kit is required.
- *6:One gigabyte (GB) is calculated as one billion bytes.
- *7:Without printing and temperature adjustment operation.
- *8:When setting [Power consumption (in sleep)] to [Low].
- *9:With the front cover open and the operation panel in the upright position.
- *10:When using duplex print: 340 mm × 460 mm (13 3/8″ × 18 3/32″)
,
