ComColor FW Accessories
1. Scanner HS7000
The auto feeder enables copying and scanning of duplex originals of to 200 sheets at a time.
- *1:80 gsm (21-lb bond) or less.
| Type | Flat Bed Scanner with Automatic Document Feeder (ADF) | |
|---|---|---|
| Scanning Modes | Copy mode: Color, Monochrome, Auto, Cyan, Magenta Scan mode: Color, Monochrome, Auto, Grayscale |
|
| Scanning Resolution | 600 dpi, 400 dpi, 300 dpi, or 200 dpi | |
| Maximum Scanning Area | 303 mm × 432 mm (11 15/16″ × 17″) (when using platen glass) 295 mm × 430 mm (11 5/8″ × 16 15/16″) (when using ADF) |
|
| Copy Functions | Writing Resolution | Standard: 300 dpi × 300 dpi Fine: 300 dpi × 600 dpi |
| Copy Paper Size | Maximum: 303 mm × 432 mm (11 15/16″ × 17″) (equivalent to A3) | |
| First Copy Time | Monochrome/Color: 7 sec or less (when copying A4-LEF/Letter-LEF orientation using Color Priority Mode) | |
| Scanning Speed | Simplex copying (A4-LEF/Letter-LEF, using ADF): 70 ppm or higher Duplex copying (A4-LEF/Letter-LEF, using ADF): 70 ppm or higher |
|
| Reproduction Size | 50% to 200% (Copy mode) 50% to 200% (Scanner mode, resolution: 200/300 dpi), 100% only (Scanner mode, resolution: 400/600 dpi) |
|
| ADF | Type | Original source displacement (capable of scanning both sides of a document by simultaneous duplex scanning) |
| Original Size | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) (equivalent to A3) Minimum: 100 mm × 148 mm (3 15/16″ × 5 27/32″) |
|
| Paper Weight | 52 gsm (14-lb bond) to 128 gsm (34-lb bond) | |
| Original Capacity | 80 gsm (21-lb bond) : Max. 200 sheets Height up to 25 mm (1″) |
|
| Scan Functions | Scanning Gray Levels | 10-bit input and 8-bit output for each RGB color |
| Scanning Speed | Monochrome/Color: 100 ppm RISO KAGAKU standard original (A4-LEF/Letter-LEF), 300 dpi, JPEG, PDF, when stored to main unit hard drive |
|
| Network Interface*1 | Ethernet 1000BASE-T/100BASE-TX/10BASE-T | |
| Data-saving Method*1 | Save to main unit hard drive, server, or USB flash drive, or send by e-mail | |
| Data-saving Format*1 | Monochrome: TIFF, PDF Grayscale/Full Color: TIFF, JPEG, PDF |
|
| Power Source | AC 100-240 V, 1.2-0.6 A, 50-60 Hz | |
| Power Consumption | Max. 100 W | |
| Dimensions (W × D × H) | 640 mm × 560 mm × 255 mm (25 3/16″ × 22 1/16″ × 10 1/32″) | |
| Weight | Approx. 25 kg (55 lb) | |
| Dimensions When Operating (when connected to main unit) (W × D × H) | In use: 1,065 mm × 830 mm × 1,260 mm (41 15/16″ × 32 21/32″ × 49 5/8″) With the front cover open and the operation panel in the upright position: 1,305 mm × 1,325 mm × 1,635 mm (51 13/32″ × 52 3/16″ × 64 3/8″) |
|
- *1:Via the internal host controller
2.Face Down Finisher F10
ComColor finisher exclusively for offset stacking and stapling finished prints.
| Type | External Unit |
|---|---|
| Finishing Functions | Offset output, staple |
| Applicable Paper Size | Without offset Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″) Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″) |
| Offset output Regular sized paper width: 182 mm × 257 mm (7 3/16″ × 10 1/8″) - 297 mm × 431.8 mm (11 11/16″ × 17″) Irregular sized paper width: 131 mm × 148 mm (5 3/16″ × 5 27/32″) - 305 mm × 550 mm (12″ × 21 5/8″) |
|
| Paper Weight | 46 gsm (12-lb bond) to 210 gsm (56-lb bond) (plain paper, recycled paper, postcards) |
| Tray Capacity | Height up to 108 mm (4 1/4″) |
| Maximum Number of Staples | 50 sheets*1 A4, A4-LEF, JIS-B5, JIS-B5-LEF, Letter, Letter-LEF 25 sheets*1 A3, JIS-B4, Ledger, Legal, Foolscap |
| Applicable Paper Size for Staple | A3, JIS-B4, A4, A4-LEF, JIS-B5, JIS-B5-LEF, Ledger, Legal, Letter, Letter-LEF, Foolscap |
| Paper Weight for Staple | 52 gsm (14-lb bond) to 210 gsm (56-lb bond) (plain paper, recycled paper) |
| Staple Position | 1 at front side (angle stapling) / 1 at rear side (angle stapling) 2 at center (parallel stapling) |
| Power Source | AC 100-240 V, 1.1-0.5 A, 50-60 Hz |
| Power Consumption | Max. 100 W |
| Dimensions (W × D × H) | 635 mm × 695 mm × 580 mm (25″ × 27 3/8″ × 22 13/16″) |
| Weight | Approx. 35 kg (77 lb) |
| Dimensions When Operating (when Connected to main unit) (W × D × H) | 1,420 mm × 1,220 mm × 1,315 mm (55 29/32″ × 48 1/32″ × 51 25/32″) |
- *1:When using plain paper and recycled paper (85 gsm (23-lb bond))

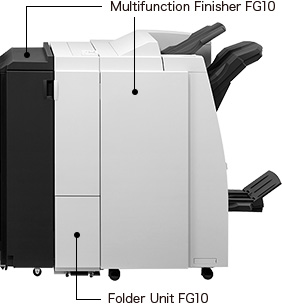

3. Multifunction Finisher FG10·Folder Unit FG10
Intelligent inline functions performed automatically simplify the finishing process.
Folder Unit FG10 supports A4 tri-fold*1. Mixed-size documents using A3-size and A4-size bundles by Z-folding the A3-size sheets*2.
- *1:Does not support tri-fold or Z-fold for multi-page documents.
- *2:When using an application that supports mixed-size printing Supports ledger/Letter-size, A3/A4-size, and B4/B5-size combinations.
Multifunction Finisher FG10
| Type | External Unit | ||
|---|---|---|---|
| Tray Type | Top Tray | Collating, stacking | |
| Stacking Tray | Collating, stacking (offset) | ||
| Booklet Tray | Booklet, Paper folding | ||
| Usable Paper Size | Top Tray*1 | Maximum: 330 mm × 488 mm (13″ × 19 3/16″) Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″) |
|
| Stacking Tray*1 | Maximum: 330 mm × 488 mm (13″ × 19 3/16″) Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″) |
||
| Stapling | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) (equivalent to A3) Minimum: 203 mm × 182 mm (8″ × 7 3/16″) |
||
| Booklet Tray*1 | Maximum: 330 mm × 457 mm (13″ × 18″) Minimum: 210 mm × 280 mm (8 1/4″ × 11″) |
||
| Paper Weight | Top Tray | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) | |
| Stacking Tray | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) | ||
| Booklet Tray | 60 gsm to 90 gsm (16-lb bond to 24-lb bond) (cover: 60 gsm (16-lb bond) to 210 gsm (56-lb bond)) |
||
| Stapling | Maximum Number of Staples*2 *3 *6 | 100 sheets | |
| Usable Paper Size | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) (equivalent to A3) Minimum: 203 mm × 182 mm (8″ × 7 3/16″) (equivalent to B5 LEF) |
||
| Staple Position | 1 at front side (angle stapling), 1 at rear side (angle stapling *4, parallel stapling), 2 at center (parallel stapling) |
||
| Punching | Number of Punches | 2 holes, 3 holes 2 holes, 4 holes |
|
| Paper Size | 2 holes: A3, B4, A4-LEF, A4, B5-LEF, Ledger, Legal, Letter-LEF, Letter 3 holes: A3, B4, A4-LEF, B5-LEF, Ledger, Letter-LEF 4 holes: A3, A4-LEF, Ledger, Letter-LEF |
||
| Paper Weight | 52 gsm to 200 gsm (14-lb bond to 53-lb bond) | ||
| Creating a Booklet (Center margin/2-fold) |
Maximum Number of Sheets*2 *5 | Center margin: 15 sheets (60 pages) 2-fold: 5 sheets (20 pages) |
|
| Operating Environment | Temperature: 15 °C - 35 °C (59 °F - 95 °F) Humidity: 40% - 70% RH (non-condensing) |
||
| Dimensions (W × D × H) | 1,120 mm × 765 mm × 1,130 mm (44 3/32″ × 30 1/8″ × 44 1/2″) | ||
| Weight | Approx. 131 kg (289 lb) | ||
| Power Source | AC 100 V - 240 V, 50 Hz - 60 Hz, 2.0 A - 1.0 A | ||
| Power Consumption | Max. 175 W | ||
| Operating Noise (when using multifunction finisher) |
Max. 68 dB (A) or less | ||
| Dimensions(when connected to main unit)(W × D × H) | With folder unit | In use: 2,350 mm × 765 mm × 1,130 mm (92 1/2″ × 30 1/8″ × 44 1/2″) |
|
| With cover, and tray extended: 2,350 mm × 1,340 mm × 1,130 mm (92 1/2″ × 52 3/4″ × 44 1/2″) |
|||
| Without folder unit | In use: 2,150 mm × 765 mm × 1,130 mm (84 5/8″ × 30 1/8″ × 44 1/2″) |
||
| With cover, and tray extended: 2,150 mm × 1,260 mm × 1,130 mm (84 5/8″ × 49 5/8″ × 44 1/2″) |
|||
- *1:When color printing on paper that is longer than 432 mm (17"), the image printed beyond 432 mm (17") may be distorted.
- *2:When using plain paper and recycled paper (85 gsm (23-lb bond))
- *3:65 sheets for a paper size exceeding A4/Letter
- *4:Rear-side angle stapling is only available for A4-LEF and A3.
- *5:Includes an added cover.
- *6:When Z-fold is mixed, Z-fold of A3 paper is equivalent to A4-LEF 10 pages and Z-hold of B4 paper is equivalent to B5-LEF 20 pages.
Folder Unit FG10
| Usable Paper Size of Fold | Z-fold*1 | A3, B4, Ledger | |
|---|---|---|---|
| Tri-fold (Outer Tri-fold/Inner Tri-fold) | A4, Letter | ||
| Paper Weight of Fold | 60 gsm to 90 gsm(16-lb bond to 24-lb bond) (plain paper, recycled paper) |
||
| Tri-fold Output Tray Capacity*2 | Approx. 30 sheets | ||
| Applicable Number of Fold | 1 sheet | ||
| Dimensions(W × D × H) | 210mm × 622mm × 1,002mm (8 1/4″ × 24 15/32″ × 39 14/32″) | ||
| Weight | Approx. 40kg (88lb) | ||
- *1:When printouts are output to the stack tray, maximum height up pages differ according to the paper size.
(A3 paper: 30 pages, B4 paper: 20 pages) - *2:When using plain paper and recycled paper (85 gsm (23-lb bond))
4. RISO Auto-Control Stacking TrayⅡ·Wide Stacking Tray
The paper guides automatically open to the correct with to match the paper in use.
| Model Name | RISO Auto-control Stacking TrayⅡ | Wide Stacking Tray | |
|---|---|---|---|
| Paper Size | Maximum: 320 mm × 432 mm(12 9/16″ × 17″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
Maximum: 340 mm × 550 mm(13 3/8″ × 21 5/8″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
|
| Tray Capacity*1 | 1,000 sheets | ||
| Dimensions when connected to Printer (W × D × H) | In use | 1,580mm ×725mm ×1,115mm (62 7/32″ × 28 9/16″ × 43 29/32″) |
1,680mm ×725mm ×1,115mm (66 5/32″ × 28 9/16″ × 43 29/32″) |
| In storage | 1,005mm ×705mm ×1,045mm (39 19/32″ × 27 25/32″ × 41 5/32″) |
940mm ×705mm ×1,000mm (37 1/32″ × 27 25/32″ × 39 3/8″) |
|
| Weight | Approximately 8 kg (17 lb) | Approximately 5 kg (11 lb) | |
- *1:When using plain paper (85 gsm (23-lb bond)).
5.ComColorExpress RS1100C
RIP software that supports the functions and workflows essential for transactional printing, bringing high productivity to every business environment.
ComColorExpress RS1100C specifications
| Compatible printer | ComColor FW Series, ComColor GD Series |
|---|---|
| PDL | PostScript3 (CPSI:3019)*, PDF (1.7), PCL 5c, PCL 6 (PCL XL), TIFF (6.0), PPML (2.1) *Genuine Adobe engine |
| Applicable protocol | TCP/IP, HTTP, HTTPS (SSL), DHCP, FTP, SMB, NetBIOS, LPR, IPP, Port 9100 (RAW port), IPv4, IPv6, IPSec |
| Installed Fonts | PS: 139 fonts (Type 1: 120, TrueType: 19) PCL: 80 fonts |
System requirements for RIP software
The computer in which the RIP software is installed must be dedicated to RIP operation.
| Operating system | Windows® 10 Home/Pro (64-bit) |
|---|---|
| CPU | For FW Series : Intel® Core™ i3-8100 3.6 GHz or faster For GD Series : Intel Core i7-8700 3.2 GHz or faster |
| Memory | For FW Series : 8 GB or greater For GD Series : 16 GB or greater |
| Hard disk | 501 GB or greater of free space |
| Network interface | 2 ports (Ethernet: 1000BASE-T) 1st port: For sending and receiving data to/from a client computer 2nd port: For sending and receiving data to/from ComColor |
| USB port | 2 ports For dongle connection: 1 port (USB 3.0 or later) For software update: 1 port (USB 2.0 or later) |
Supported OS for printer driver and RISO Management Tool
| Operating system (Client computer) |
Windows: Windows 7 (32-bit/64-bit) SP1 or later, Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit) SP2 or later, Windows Server 2008 R2 (64-bit) SP2 or later, Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit) Mac OS: v10.8 (Mountain Lion), v10.9 (Mavericks), v10.10 (Yosemite), v10.11 (El Capitan), v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave) Linux® Only the operations using the PPD with the CUPS are supported. |
|---|
6.PS Kit FG10
PS Kit supports a variety of operating systems, and PDF files can be printed directly from USB flash drives.
| Type | RIP option | |
|---|---|---|
| PDL (Page Description Language) | PostScript Level3 (CPSI:3019) *1 PDF (1.7) PCL 5c, PCL 6 (PCL XL) TIFF (6.0) |
|
| Supported Protocols | TCP/IP, HTTP, HTTPs, DHCP, ftp, lpr, IPP, SNMP, Port9100 (RAW port), IPv4, IPv6, IPsec | |
| Installed Fonts | PS: 136 Roman fonts and 2 Japanese fonts PCL: 88 Roman fonts |
|
- *1:Genuine Adobe engine.
7. IC Card Authentication Kit Ⅱ
The optional IC Card Authentication kit enables user management using an IC card.
| Applicable Card | ISO 14443 TypeA/TypeB/TypeC (FeliCa/Mifare) | |
|---|---|---|
| Radio Law Category | Guided read-write communication equipment | |
| Power Source | Power supplied from the USB port | |
| Operating Environment | Temperature: 15℃ to 30℃ (59℉ to 86℉) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions(W × D × H) | 93 mm × 65 mm × 19 mm (3 21/32″ × 2 9/16″ × 3/4″) (excluding protruding parts) | |
| Weight | Approx. 90 g (3 oz) | |
8.Envelope Feed Kit/Card Feed Kit
| Model Name | Envelope Feed Kit | Card Feed Kit |
|---|---|---|
| Paper Size | Maximum: 270 mm × 382 mm (10 5/8″ × 15 1/16″) Minimum: 90 mm × 148 mm (3 9/16″ × 5 13/16″) |
Maximum: 160 mm × 218 mm (6 5/16″ × 8 9/16″) Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″) |
| Paper Weight | 50 gsm to 120 gsm (13-lb bond to 32-lb bond) | 100 gsm to 400 gsm (27-lb bond to 107-lb bond) |
,
