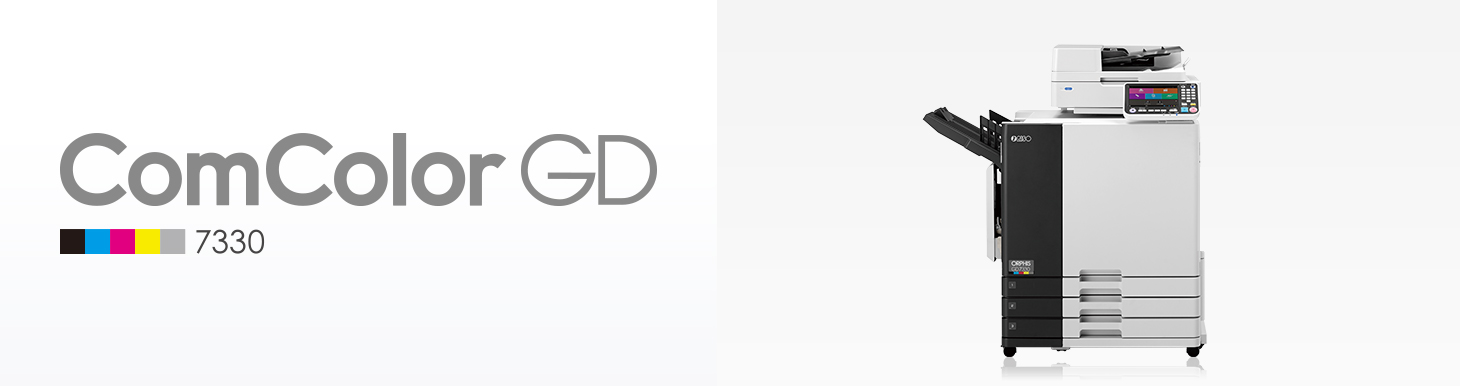

ComColor GD7330 Specs
Specifications
| GD7330 | ||
|---|---|---|
| Print Type | Line-type inkjet system | |
| Ink Type | Oil-based pigment ink (Cyan, Magenta, Yellow, Black, Gray) | |
| Print Resolution | Standard/High Chromogenic Black: 600 dpi (main scanning direction) ×600 dpi (sub-scanning direction) Cyan, Magenta, Yellow, Gray: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction) Fine Black: 600 dpi (main scanning direction) × 600 dpi (sub-scanning direction) Cyan, Magenta, Yellow, Gray: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction) |
|
| Number of Gray Levels | Black: 4 gray levels Cyan, Magenta, Yellow, Gray: 12 gray levels |
|
| Data Processing Resolution | Standard/High Chromogenic Black: 600 dpi × 600 dpi Cyan, Magenta, Yellow, Gray: 300 dpi × 300 dpi Fine Black: 600 dpi × 600 dpi Cyan, Magenta, Yellow, Gray: 300 dpi × 600 dpi Line Smoothing 600 dpi × 600 dpi |
|
| Warm-up Time | 2 min. 30 sec. or less (at room temperature of 23 ºC (73.4 ºF)) | |
| First Print Time *1 | 5 sec. or less (A4 long-edge feed) | |
| First Copy Time *1 | 7 sec. or less (A4 long-edge feed) | |
| Continuous Print Speed *2*3 | A4 long-edge feed | Simplex: 130 ppm Duplex: 65 sheets/minute (130 ppm) |
| Letter long-edge feed | Simplex: 130 ppm Duplex: 65 sheets/minute (130 ppm) | |
| A4 short-edge feed | Simplex: 104 ppm Duplex: 52 sheets/minute (104 ppm) | |
| Letter short-edge feed | Simplex: 104 ppm Duplex: 52 sheets/minute (104 ppm) | |
| B4 (JIS) short-edge feed | Simplex: 88 ppm Duplex: 42 sheets/minute (84 ppm) | |
| Legal short-edge feed | Simplex: 90 ppm Duplex: 42 sheets/minute (84 ppm) | |
| A3 short-edge feed | Simplex: 78 ppm Duplex: 38 sheets/minute (76 ppm) | |
| Ledger short-edge feed | Simplex: 76 ppm Duplex: 37 sheets/minute (74 ppm) | |
| Paper Size | Standard Tray | Maximum: 340 mm × 550 mm (13 3/8" × 21 5/8") Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32") |
| Feed Tray | Maximum: 297 mm × 432 mm (11 11/16" × 17") Minimum: 182 mm × 182 mm (7 3/16" × 7 3/16") |
|
| Printable Area | 314 mm × 548 mm (12 3/8" × 21 19/32") | |
| Guaranteed Print Area *4 | Standard: Margin width of 3 mm (1/8") Maximum: Margin width of 1 mm (3/64") |
|
| Paper Weight | Standard Tray | 46 gsm to 210 gsm (12-lb bond to 56-lb bond) |
| Feed Tray | 52 gsm to 104 gsm (14-lb bond to 28-lb bond) | |
| Paper Tray Capacity | Standard Tray | Height up to 110 mm (4 5/16") |
| Feed Tray | Height up to 56 mm (2 3/16") (×3 trays) | |
| Output Tray Capacity | Height up to 60 mm (2 3/8") | |
| PDL (Page Description Language) | RISORINC/C IV | |
| Supported Protocols | TCP/IP, HTTP, HTTPs (TLS), DHCP, ftp, lpr, IPP, SNMP, Port9100 (RAW port), IPv4, IPv6, IPSec | |
| Supported Operating Systems | Standard | Microsoft®: Windows® 7 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit) |
| Optional *5 | Mac: macOS v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) Linux® (compatible with PPD only) |
|
| Network Interface | Ethernet 1000BASE-T/100BASE-TX/10BASE-T (2ch) | |
| Memory Capacity | 4 GB | |
| Hard Disk *6 | Capacity | 500 GB |
| Available Space | Approx. 430 GB | |
| Operating System | Linux | |
| Power Source | AC 100 V - 240 V, 12.0 A - 6.0 A, 50 Hz - 60 Hz | |
| Power Consumption | Max. 1,200 W | |
| Ready *7: 150 W or less Sleep *8: 4 W or less Stand-by: 0.5 W or less |
||
| Operating Noise | Max. 66 dB (A) A4 long-edge feed (Simplex) at the maximum print speed | |
| Operating Environment | Temperature: 15 ºC to 30 ºC (59 ºF to 86 ºF) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions (W × D × H) | In use: 1,220 mm × 725 mm × 1,160 mm (48 1/32" × 28 17/32" × 45 21/32") With cover and tray closed: 1,160 mm × 705 mm × 1,015 mm (45 21/32" × 27 3/4" × 39 15/16") |
|
| Required Space (W × D × H) *9 | 1,220 mm × 1,240 mm × 1,160 mm (48 1/32" × 48 13/16" × 45 21/32") | |
| Weight | Approx. 175 kg (386 lb) | |
- *1:Within 10 minutes after the last print job
- *2:When using plain paper and recycled paper (85 gsm (23-lb bond)), and standard density setting. Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)]
- *3:The continuous print speed varies depending on the type of optional output equipment connected.
- *4:The margin when printing envelopes is 10 mm (3/8"). The guaranteed area when printing images is the area enclosed within 3 mm (1/8") of the edges of the paper.
- *5:Optional PS kit is required.
- *6:One gigabyte (GB) is calculated as 1 billion bytes.
- *7:Without printing and temperature adjustment operation.
- *8:When setting [Power Consumption (in Sleep)] to [Low]
- *9:With the front cover open and the operation panel in the upright position
,
