Specifications
1.Scanner HS7000
| Type | Flat Bed Scanner with Automatic Document Feeder (ADF) | |
|---|---|---|
| Scanning Modes | Copy mode: Color, Monochrome, Auto, Cyan, Magenta Scan mode: Color, Monochrome, Auto, Grayscale |
|
| Scanning Resolution | 600 dpi, 400 dpi, 300 dpi, or 200 dpi | |
| Maximum Scanning Area | 303 mm × 432 mm (11 15/16" × 17") (when using platen glass) 295 mm × 430 mm (11 5/8" × 16 15/16") (when using ADF) |
|
| Copy | Writing Resolution |
Standard: 300 dpi× 300 dpi Fine: 300 dpi× 600 dpi |
| Copy Paper Size | Maximum: 303 mm × 432 mm (11 15/16" × 17") (equivalent to A3) | |
| First Copy Time | Monochrome/Color: 7 sec. or less (when copying A4/Letter long-edge feed orientation using Color Priority Mode) |
|
| Copying Speed | Simplex copying (A4/Letter long-edge feed, using ADF): 70 ppm or higher Duplex copying (A4/Letter long-edge feed, using ADF): 70 ppm or higher |
|
| Reproduction Size |
50% to 200% (Copy mode) 50% to 200% (Scanner mode, resolution: 200/300 dpi), only 100%(Scanner mode, resolution: 400/600 dpi) |
|
| Auto Document Feeder |
Type | Original source displacement (capable of scanning both sides of a document by simultaneous duplex scanning) |
| Original Size | Maximum: 297 mm × 432 mm (11 11/16" × 17") (equivalent to A3) Minimum: 100 mm × 148 mm (3 15/16" × 5 27/32") |
|
| Paper Weight | 52 gsm to 128 gsm (14-lb bond to 34-lb bond) | |
| Original Capacity | Max. 200 sheets: 80 gsm (21-lb bond) Height up to 25 mm (1") |
|
| Scan | Scanning Gray Levels |
10-bit input and 8-bit output for each RGB color |
| Scanning Speed | Monochrome/Color: 100 ppm *RISO KAGAKU standard original （A4/Letter long-edge feed）, 300 dpi, JPEG, PDF, when stored to main unit hard drive |
|
| Network Interface*1 | Ethernet 1000BASE-T/100BASE-TX/10BASE-T | |
| Data-saving Method*1 |
Save to main unit hard drive, server, or USB flash drive, or send by e-mail | |
| Data-saving Format*1 |
Monochrome: TIFF, PDF, PDF/A Grayscale/Full Color: TIFF, JPEG, PDF, PDF/A |
|
| Power Source | AC 100 V - 240 V, 1.2 A - 0.6 A, 50 Hz - 60 Hz | |
| Power Consumption | Max. 100 W | |
| Dimensions (W × D × H) | 640 mm× 560 mm× 255 mm (25 3/16" × 22 1/16" × 10 1/32") | |
| Required Space with Printer (W × D × H） |
1,235 mm × 1,345 mm × 1,635 mm (48 5/8" × 52 31/32" × 64 3/8") | |
| Weight | Approx. 25 kg (55 lb) | |
- *1:Via the internal host controller
2.Face Down Finisher G10
| Type | External Unit |
|---|---|
| Finishing Functions | Offset stacking, staple |
| Paper Size | Without offset Maximum: 340 mm × 550 mm (13 3/8" × 21 5/8") Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32") |
| Offset output Regular-sized paper width: 182 mm × 257 mm - 297 mm × 431.8mm (7 3/16" × 10 1/8" - 11 11/16" × 17") Irregular-sized paper width: 131 mm × 148 mm - 305 mm × 550mm (5 3/16" × 5 27/32" - 12" × 21 5/8") |
|
| Paper Weight | 46 gsm to 210 gsm (12-lb bond to 56-lb bond) |
| Tray Capacity | Height up to 108 mm (4 1/4") |
| Maximum Number of Staples | 50 sheets* A4, A4 long-edge feed, B5(JIS), B5(JIS) long-edge feed, Letter, Letter long-edge feed 25 sheets* A3, B4(JIS), Ledger, Legal, Foolscap *When using plain paper and recycled paper (85 gsm (23-lbbond)) |
| Paper Size for Staple | A3, B4(JIS), A4, A4 long-edge feed, B5(JIS), B5(JIS) long-edge feed, Ledger, Legal, Letter, Letter long-edge feed, Foolscap |
| Paper Weight for Staple | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) (plain paper, recycled paper) |
| Staple Position | 1 at front side (angle stapling) 1 at rear side (angle stapling) 2 at center (parallel stapling) |
| Power Source | AC 100 V - 240 V, 1.2 A - 0.6 A, 50 Hz - 60 Hz |
| Power Consumption | Max. 110 W |
| Dimensions (W × D × H) | 760 mm × 680 mm × 585 mm (29 15/16" × 26 25/32" × 23 1/32") |
| Required Space with Printer (W × D × H) |
1,440 mm × 1,240 mm × 1,345 mm (56 11/16" × 48 13/16" × 52 31/32") |
| Weight | Approx. 30 kg (66 lb) |
3.High Capacity Feeder G10
| Type | External Unit |
|---|---|
| Paper Size | Maximum: 340 mm×465 mm (13 3/8"×18 5/16") |
| Minimum: 90 mm×148 mm (3 9/16"×5 27/32") | |
| Paper Type and Weight | 46 gsm to 210 gsm (12-lb bond to 56-lb bond) (plain paper, recycled paper, envelopes, postcards) |
| Tray Capacity | Height up to 440 mm (17 11/32") |
| Power Source | AC 100 V - 240 V, 1.0 A - 0.5 A, 50 Hz - 60 Hz |
| Power Consumption | Max. 100 W Ready*1: 30 W or less Sleep*2: 30 W or less Stand-by: 0.5 W or less |
| Operating Noise | Max. 68 db (A) A4-long-edge feed (Simplex) at the maximum print speed |
| Dimensions (W×D×H) | 790 mm×630 mm×740 mm (31 1/8"×24 13/16"×29 5/32") |
| Required Space with Printer (W×D×H) |
1,565 mm×1,240 mm×1,160 mm (61 5/8"×48 13/16"×45 11/16") |
| Weight Approx. | 69 kg (152 lb) |
- *1:Without printing operation
- *2:When setting [Power Consumption (in Sleep)] to [Low].

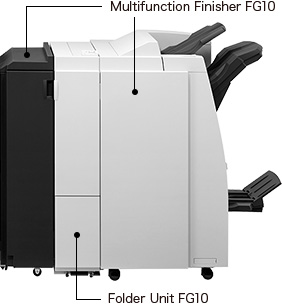

4.Multifunction Finisher FG10·Folder Unit FG10
Intelligent inline functions performed automatically simplify the finishing process.
Folder Unit FG10 supports A4 tri-fold*1. Mixed-size documents using A3-size and A4-size bundles by Z-folding the A3-size sheets*2.
- *1:Does not support tri-fold or Z-fold for multi-page documents.
- *2:When using an application that supports mixed-size printing Supports ledger/Letter-size, A3/A4-size, and B4/B5-size combinations.
Multifunction Finisher FG10
| Type | External Unit | ||
|---|---|---|---|
| Tray Type | Top Tray | Collating, stacking | |
| Stacking Tray | Collating, stacking (offset) | ||
| Booklet Tray | Booklet, Paper folding | ||
| Usable Paper Size | Top Tray*1 | Maximum: 330 mm × 488 mm (13″ × 19 3/16″) Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″) |
|
| Stacking Tray*1 | Maximum: 330 mm × 488 mm (13″ × 19 3/16″) Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″) |
||
| Booklet Tray*1 | Maximum: 330 mm × 457 mm (13″ × 18″) Minimum: 210 mm × 280 mm (8 1/4″ × 11″) |
||
| Paper Weight | Top Tray | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) | |
| Stacking Tray | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) | ||
| Booklet Tray | 60 gsm to 90 gsm (16-lb bond to 24-lb bond) (cover: 60 gsm (16-lb bond) to 210 gsm (56-lb bond)) |
||
| Stapling | Maximum Number of Staples*2 *3 *6 | 100 sheets | |
| Usable Paper Size | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) (equivalent to A3) Minimum: 203 mm × 182 mm (8″ × 7 3/16″) (equivalent to B5 LEF) |
||
| Staple Position | 1 at front side (angle stapling), 1 at rear side (angle stapling *4, parallel stapling), 2 at center (parallel stapling) |
||
| Punching | Number of Punches | 2 holes, 3 holes 2 holes, 4 holes |
|
| Paper Size | 2 holes: A3, B4, A4-LEF, A4, B5-LEF, Ledger, Legal, Letter-LEF, Letter 3 holes: A3, B4, A4-LEF, B5-LEF, Ledger, Letter-LEF 4 holes: A3, A4-LEF, Ledger, Letter-LEF |
||
| Paper Weight | 52 gsm to 200 gsm (14-lb bond to 53-lb bond) | ||
| Creating a Booklet (Center margin/2-fold) |
Maximum Number of Sheets*2 *5 | Center margin: 15 sheets (60 pages) 2-fold: 5 sheets (20 pages) |
|
| Operating Environment | Temperature: 15℃ - 35℃ (59℉ - 95℉) Humidity: 40% - 70% RH (non-condensing) |
||
| Dimensions (W × D × H) | 1,120 mm × 765 mm × 1,130 mm (44 3/32″ × 30 1/8″ × 44 1/2″) | ||
| Weight | Approx. 131 kg (289 lb) | ||
| Power Source | AC 100 V - 240 V, 50 Hz - 60 Hz, 2.0 A - 1.0 A | ||
| Power Consumption | Max. 175 W | ||
| Operating Noise (when using multifunction finisher) |
Max. 68 dB (A) or less | ||
| Required Space with Printer(W × D × H) | With folder unit | 2,520 mm × 1,340 mm × 1,160 mm (99 7/32″ × 52 3/4″ × 45 11/16″) | |
| Without folder unit | 2,315 mm × 1,280 mm × 1,160 mm (91 5/32″ × 50 13/32″ × 45 11/16″) | ||
- *1:When color printing on paper that is longer than 432 mm (17"), the image printed beyond 432 mm (17") may be distorted.
- *2:When using plain paper and recycled paper (85 gsm (23-lb bond))
- *3:65 sheets for a paper size exceeding A4/Letter
- *4:Rear-side angle stapling is only available for A4-LEF and A3.
- *5:Includes an added cover.
- *6:When Z-fold is mixed, Z-fold of A3 paper is equivalent to A4-LEF 10 pages and Z-hold of B4 paper is equivalent to B5-LEF 20 pages.
Folder Unit FG10
| Usable Paper Size of Fold | Z-fold*1 | A3, B4, Ledger | |
|---|---|---|---|
| Tri-fold (Outer Tri-fold/Inner Tri-fold) | A4, Letter | ||
| Paper Weight of Fold | 60 gsm to 90 gsm(16-lb bond to 24-lb bond) (plain paper, recycled paper) |
||
| Tri-fold Output Tray Capacity*2 | Approx. 30 sheets | ||
| Applicable Number of Fold | 1 sheet | ||
| Dimensions(W × D × H) | 210mm × 622mm × 1,002mm (8 1/4″ × 24 15/32″ × 39 14/32″) | ||
| Weight | Approx. 40kg (88lb) | ||
- *1:When printouts are output to the stack tray, maximum height up pages differ according to the paper size.
(A3 paper: 30 pages, B4 paper: 20 pages) - *2:When using plain paper and recycled paper (85 gsm (23-lb bond))
5.RISO Auto-Control Stacking TrayⅡ·Wide Stacking Tray
The paper guides automatically open to the correct width to match the paper in use.
| Model Name | RISO Auto-control Stacking TrayⅡ | Wide Stacking Tray | |
|---|---|---|---|
| Paper Size | Maximum: 320 mm × 432 mm(12 9/16″ × 17″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
Maximum: 340 mm × 550 mm(13 3/8″ × 21 5/8″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
|
| Tray Capacity*1 | 1,000 sheets | ||
| Dimensions when connected to Printer (W × D × H) | In use | 1,580mm ×725mm ×1,115mm (62 7/32″ × 28 9/16″ × 43 29/32″) |
1,680mm ×725mm ×1,115mm (66 5/32″ × 28 9/16″ × 43 29/32″) |
| In storage | 1,005mm ×705mm ×1,045mm (39 19/32″ × 27 25/32″ × 41 5/32″) |
940mm ×705mm ×1,000mm (37 1/32″ × 27 25/32″ × 39 3/8″) |
|
| Weight | Approximately 8 kg (17 lb) | Approximately 5 kg (11 lb) | |
- *1:When using plain paper (85 gsm (23-lb bond)).
6.High Capacity Stacker G10
| Type | External Unit |
|---|---|
| Finishing Functions | Collating, offset stacking |
| Paper Size | Maximum: 340 mm × 460 mm (13 3/8" × 18 1/8") Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32") Offset: 90 mm × 182 mm - 340 mm × 432 mm (3 9/16" × 7 3/16" - 13 3/8" × 17") (Envelopes are not acceptable.) |
| Paper Type and Weight | 46 gsm to 210 gsm (12-lb bond to 56-lb bond) (plain paper, recycled paper, postcards) |
| Tray Capacity | Collating: Height up to 440 mm (17 11/32")*1 Offset: Height up to 405 mm (15 15/16")*2 |
| Power Source | AC 100 V - 240 V, 1.4 A - 0.7 A, 50 Hz - 60 Hz |
| Power Consumption | Max. 140 W Ready*3: 30 W or less Sleep*4: 30 W or less Stand-by: 0.5 W or less |
| Operating Noise | 68 dB (A) or less A4-long-edge feed (Simplex/duplex) at the maximum print speed |
| Dimensions (W × D × H) | 1,000 mm × 700 mm × 960 mm (39 3/8" × 27 9/16" × 37 13/16") |
| Required Space with Printer (W × D × H) |
2,210 mm × 1,315 mm × 1,160 mm (87 1/32" × 51 25/32" × 45 11/16") |
| Weight | Approx. 135 kg (298 lb) |
- *1:Height up to 110 mm for A5, postcards, envelopes, non-regular size paper
- *2:Not applicable to A5, postcards, envelopes, non-regular size paper, etc.
- *3:Without printing operation
- *4:When setting [Power Consumption (in Sleep)] to [Low].
7.Wrapping Envelope Finisher G10
| Type | In-line sealed mail making | |
|---|---|---|
| Compatible Printer | ComColor GD9630/7330 | |
| Finishing Type | Sealed mail making | |
| Size of Envelope Form*1 | Envelope Form A | 233 mm × 296 mm (approx. 105 gsm) |
| Envelope Form B | 233 mm × 391 mm (approx. 105 gsm) | |
| Envelope Form C | 243 mm × 296 mm (9 9/16" × 11 21/32"), approx. 105 gsm (28-lb bond) | |
| Insert Paper*1 | Paper Size | A4 (210 mm × 297 mm), B5 (182 mm × 257 mm), Legal (8 1/2" × 14"), Letter (8 1/2" × 11") |
| Paper Type and Weight | Standard tray: Plain paper, recycled paper (46 gsm to 120 gsm (12.2-lb bond to 31.9-lb bond)) Feed tray: Plain paper, recycled paper (52 gsm to 104 gsm (14-lb bond to 28-lb bond)) |
|
| Maximum Printable Area*1 | Envelope Form A | 212 mm × 217 mm |
| Envelope Form B | 212 mm × 311 mm | |
| Envelope Form C | 222 mm × 217 mm (8 23/32" × 8 9/16") | |
| Paper Tray Capacity | Standard Tray | Height up to 110 mm (4 5/16") |
| Feed Tray | Height up to 50 mm (1 31/32") (× 3 trays) | |
| High Capacity Feeder (optional) | Height up to 440 mm (17 11/32") | |
| Maximum Load of the Mail Stacker | Height up to 310 mm (12 7/32") (Approx. 110 mails: IJ paper (85 gsm (23-lb bond))/1 sheet insert with Inner 3-folds) | |
| Number of Insert Pages*1 |
A4 size | 46 gsm to 59 gsm: 6 sheets or less 60 gsm to 80 gsm: 5 sheets or less 81 gsm to 100 gsm: 4 sheets or less 101 gsm to 120 gsm: 3 sheets or less |
| Letter Size (with tri-fold) | 46 gsm to 59 gsm (12.2-lb bond to 15.7-lb bond): 6 sheets or less 60 gsm to 80 gsm (16-lb bond to 21.3-lb bond): 5 sheets or less 81 gsm to 100 gsm (21.5-lb bond to 26.6-lb bond): 4 sheets or less 101 gsm to 120 gsm (26.9-lb bond to 31.9-lb bond): 3 sheets or less |
|
| Legal Size (with quad-fold) | 46 gsm to 59 gsm (12.2-lb bond to 15.7-lb bond): 4 sheets or less 60 gsm to 80 gsm (16-lb bond to 21.3-lb bond): 3 sheets or less 81 gsm to 100 gsm (21.5-lb bond to 26.6-lb bond): 2 sheets or less 101 gsm to 120 gsm (26.9-lb bond to 31.9-lb bond): 1 sheet |
|
| Adhesion Method | Mail Short-edge Part | Pressurized adhesion method to the pressure-sensitive adhesive coated area. |
| Mail Long-edge Part | Wet coating adhesion method to the remoistening adhesive coated area. | |
| Remoistening Adhesive | Supplementation Method | Replenish from the water supply tank (removal possible) |
| Water Supply Tank Capacity | 400 ml | |
| Water Tank Capacity Inside Printer | 480 ml | |
| Finished Mail Size*1 | Envelope Form A | 233 mm × 110 mm |
| Envelope Form B | 233 mm × 158 mm | |
| Envelope Form C | 243 mm × 110 mm (9 9/16" × 4 5/16") | |
| Processing Speed*2 | 40 mails/min for A4 simplex 41 mails/min for Letter simplex |
|
| Power Source | AC 100-240 V, 3.0-1.5 A, 50-60 Hz | |
| Power Consumption | Maximum: 250 W | |
| Operating Noise*3 | Max. 68 dB | |
| Operating Environment | Temperature: 15°C to 30°C (59°F to 86°F) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions (W × D × H) | 990 mm × 710 mm × 960 mm (38 31/32" × 27 15/16" × 37 13/16") | |
| Required Space with Printer (W × D × H) | 2,270 mm × 1,280 mm × 1,160 mm (89 3/8" × 50 3/8" × 45 21/32") | |
| Weight | Approx. 161 kg (355-lb) | |
- *1:Supported paper size may differ according to the model.
- *2:For ComColor GD9630: When inserting one page for A4/letter simplex printing.
- *3:When connecting the printer and sealing the envelope form with one insert sheet.
- * Do not leave mails sealed with this unit in a location exposed to direct sunlight for a long term (approximately one month*).
Otherwise sealed mails may be spontaneously opened due to degradation of the sealing adhesive. - * The period of time varies depending on the envelope form.
- * Please use caution when printing and inserting confidential information with this unit.RISO is not liable for opened mails, due to degradation of the sealing adhesive.
- * Send out sealed mails promptly or store them in a dark place.

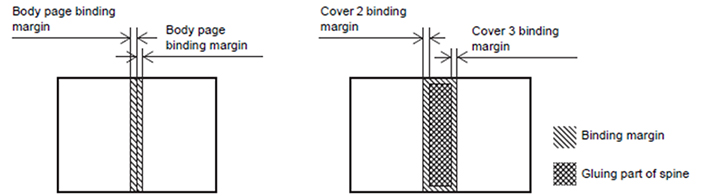

8.Perfect Binder G10
| Type | Perfect Binder | |
|---|---|---|
| Finishing Type | Perfect Binding | |
| Warming-Up Time | 13 min. or less (at a room temperature of 23°C) | |
| Binding speed*1 | 62 booklets/hour | |
| Paper Size | Body page (long-edge feed): A4, B5(JIS), A5, Letter | |
| Cover sheet*2 (When cutting off the surplus part): A5: 210 mm × 307 mm - 342 mm (8 1/4" × 12 3/32" - 13 15/32") B5: 257 mm × 374 mm - 409 mm (10 1/8" × 14 23/32" - 16 1/8") A4: 297 mm × 430 mm - 465 mm (11 11/16" × 16 15/16" - 18 5/16") Letter: 279.4 mm × 441.8 mm - 476.8 mm (11" × 17 13/32" - 18 25/32") Cover sheet (When leaving the surplus part): A5: 210 mm × 298.5 mm - 398 mm (8 1/4" × 11 3/4" - 15 11/16") B5: 257 mm × 365.5 mm - 432 mm (10 1/8" × 14 3/8" - 17") A4: 297 mm × 421.5 mm - 460 mm (11 11/16" × 16 5/8" - 18 1/8") Letter: 279.4 mm × 433.3 mm - 466 mm (11" × 17 1/16" - 18 11/32") |
||
| Paper Weight | Standard Tray | Body page: plain paper, recycled paper 52 gsm to 128 gsm (14-lb bond to 34-lb bond) (For A5 long-edge feed, 64 gsm to 128 gsm (17-lb bond to 34-lb bond)) |
| Cover*3: Plain paper, recycled paper, high-quality paper 80 gsm to 210 gsm (21-lb bond to 56-lb bond) | ||
| Feed Tray | Body page: plain paper, recycled paper 52 gsm to 104 gsm (14-lb bond to 28-lb bond) (not available with A5 long-edge feed) |
|
| Cover*3: plain paper, recycled paper 80 gsm to 104 gsm (21-lb bond to 28-lb bond) | ||
| Body Sheet Stacker |
Body page: plain paper, recycled paper 52 gsm to 128 gsm (14-lb bond to 34-lb bond) | |
| Cover Sheet Inserter |
Cover*3: Plain paper, recycled paper, high-quality paper 80 gsm to 210 gsm (21-lb bond to 56-lb bond) | |
| Binding Thickness (Binding Amount of Sheets) |
1.5 mm - 30 mm (1/16" - 1 3/16") When using plain paper (85 gsm (23-lb bond)), 15 - 300 sheets Binding amount of sheets varies depending on the paper type. |
|
| Binding Side | Long side only | |
| Output Capacity*4 | 30 copies (Max. 50 sheets for a copy) | |
| Essential margin*5 | Body page: Min. 5 mm (7/32") Cover: Whole back side of spine, min. 5 mm (7/32") on Cover 2 and Cover 3 |
|
| Corresponding File Format | Microsoft® Word2010, Excel2010, PowerPoint2010, PDF Version 1.3 to 1.7 | |
| Power Source | Perfect Binder G10 (120) AC 100-120 V 12.0 A 50-60 Hz Perfect Binder G10 (200) AC 220-240 V 6.0 A 50-60 Hz |
|
| Power Consumption | Max. 1,500 W | |
| Operating noise*6 | Max. 70 dB or less (when binding) | |
| Dimensions (W × D × H) | 1,290 mm × 675 mm × 1,125 mm (50 25/32" × 26 9/16" × 44 5/16") | |
| Required Space with Printer (W × D × H) |
2,755 mm × 1,240 mm × 1,160 mm (108 15/32" × 48 13/16" × 45 11/16") | |
| Weight | Approx. 220 kg (485 lb) | |
- *1:The per hour speed converted based on the time required for the 5th to 10th booklet to be completed when configured with the following: Type of paper - IJ paper; Concentration - standard; and Resolution - 300 dpi.
- *2:The length of the cover will vary depending on the thickness of the body pages to be bound.
Paper with shorter length than body pages cannot be used. - *3:If the thickness of the booklet (spine) will be 20 mm (25/32") or more, the use of paper that is 105 gsm (28-lb bond) or heavier is recommended.
- *4:When using plain paper or recycled paper (85 gsm (23-lb bond))
- *5:●Two-page spread on the body page ●Two-page spread on the cover
- *6:160 ppm when connected to the printer, binding A4 long-edge feed
9.ComColorExpress FS2000C
| CPU | Intel® Core™ i3-4330 3.50GHz |
|---|---|
| Memory Capacity | 8 GB |
| Hard Disk Capacity | 500 GB |
| Operating System | Windows® 10 IoT Enterprise |
| Network Interface | 2 ports (Ethernet: 10BASE-T/100BASE-TX/1000BASE-T) |
| Power Source | AC 100 V - 240 V, 3.0 A - 1.5 A, 50 Hz - 60 Hz |
| Power Consumption | Max. 180 W |
| Dimensions (W × D × H)*1 | 145 mm × 400 mm × 325 mm (5.8"×15.8"×12.8"） |
| Weight | Approx. 7 kg |
| PDL（Page Description Language） | PostScript® 3 (CPSI:3020), PDF (1.7) (APPE 3.0), EPS, TIFF (6.0), PCL 5c, PCL 6 (PCL XL), PPML (3.0), FreeForm, FreeForm2, PDF/VT, Creo VPS, Fiery JDF (1.5) |
| Support Protocol | TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP, SMB, Port 9100 (RAW port), IPv4, IPv6, IPSec, Bonjour, EtherTalk |
| Installed Font | PS: 138 fonts (Type1:126, TrueType:10, MM:2) PCL: 81 fonts |
| Supported Client Operating System | Windows 7 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit), Mac v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) |
- *1:Keep other objects at least 200 mm away from the equipment in the rear, and right and left.
10.ComColorExpress RS1100C
RIP software that supports the functions and workflows essential for transactional printing, bringing high productivity to every business environment.
ComColorExpress RS1100C specifications
| Compatible printer | ComColor FW Series, ComColor GD Series |
|---|---|
| PDL | PostScript3 (CPSI:3019)*, PDF (1.7), PCL 5c, PCL 6 (PCL XL), TIFF (6.0), PPML (2.1) *Genuine Adobe engine |
| Applicable protocol | TCP/IP, HTTP, HTTPS (SSL), DHCP, FTP, SMB, NetBIOS, LPR, IPP, Port 9100 (RAW port), IPv4, IPv6, IPSec |
| Installed Fonts | PS: 139 fonts (Type 1: 120, TrueType: 19) PCL: 80 fonts |
System requirements for RIP software
The computer in which the RIP software is installed must be dedicated to RIP operation.
| Operating system | Windows® 10 Home/Pro (64-bit) |
|---|---|
| CPU | For FW Series : Intel® Core™ i3-8100 3.6 GHz or faster For GD Series : Intel Core i7-8700 3.2 GHz or faster |
| Memory | For FW Series : 8 GB or greater For GD Series : 16 GB or greater |
| Hard disk | 501 GB or greater of free space |
| Network interface | 2 ports (Ethernet: 1000BASE-T) 1st port: For sending and receiving data to/from a client computer 2nd port: For sending and receiving data to/from ComColor |
| USB port | 2 ports For dongle connection: 1 port (USB 3.0 or later) For software update: 1 port (USB 2.0 or later) |
Supported OS for printer driver and RISO Management Tool
| Operating system (Client computer) |
Windows: Windows 7 (32-bit/64-bit) SP1 or later, Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit) SP2 or later, Windows Server 2008 R2 (64-bit) SP2 or later, Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit) Mac OS: v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) Linux® Only the operations using the PPD with the CUPS are supported. |
|---|
11.PS Kit FG10
PS Kit supports a variety of operating systems, and PDF files can be printed directly from USB flash drives.
| Type | RIP option | |
|---|---|---|
| PDL (Page Description Language) | PostScript Level3 (CPSI:3019) *1 PDF (1.7) PCL 5c, PCL 6 (PCL XL) TIFF (6.0) |
|
| Supported Protocols | TCP/IP, HTTP, HTTPs, DHCP, ftp, lpr, IPP, SNMP, Port9100 (RAW port), IPv4, IPv6, IPsec | |
| Installed Fonts | PS: 136 Roman fonts and 2 Japanese fonts PCL: 88 Roman fonts |
|
- *1:Genuine Adobe engine.
12.IC Card Authentication Kit II
The optional IC Card Authentication kit enables user management using an IC card.
| Applicable Card | ISO 14443 TypeA/TypeB/TypeC (FeliCa/Mifare) | |
|---|---|---|
| Radio Law Category | Guided read-write communication equipment | |
| Power Source | Power supplied from the USB port | |
| Operating Environment | Temperature: 15℃ to 30℃ (59℉ to 86℉) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions(W × D × H) | 93 mm × 65 mm × 19 mm (3 21/32″ × 2 9/16″ × 3/4″) (excluding protruding parts) | |
| Weight | Approx. 90 g (3 oz) | |
13.Envelope Feed Kit/Card Feed Kit
| Model Name | Envelope Feed Kit | Card Feed Kit |
|---|---|---|
| Paper Size | Maximum: 270 mm × 382 mm (10 5/8″ × 15 1/16″) Minimum: 90 mm × 148 mm (3 9/16″ × 5 13/16″) |
Maximum: 160 mm × 218 mm (6 5/16″ × 8 9/16″) Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″) |
| Paper Weight | 50 gsm to 120 gsm (13-lb bond to 32-lb bond) | 100 gsm to 400 gsm (27-lb bond to 107-lb bond) |
14.RISO Security Package G10
This is to enhance security functions with encrypted communication functions or user authentication functions to prevent tampering by a third party.
This product comply GD series to ISO15408 certification with HCD PP (Protection Profile for Hardcopy Devices).
| Version of Common Criteria(ISO15408): | 3.1 Release5 | |
|---|---|---|
| PP Identifier : | Protection Profile for Hardcopy Devices v1.0 | |
| Functions: | Identification ,Authentication and Authorization Access Control Encryption of Stored Data Communication Protection Security Management Audit log Self-test and Firmware Verification |
|
,
, ComColor, ComColorExpress, FORCEJET and RISORINC are trademarks or registered
trademarks of RISO KAGAKU CORPORATION. EFI, Fiery, Fiery Driven, Command WorkStation, FreeForm, Fiery JobMaster, Fiery JobFlow, and PrintMe are trademarks of Electronics For Imaging, Inc. and/or its wholly owned
subsidiaries in the United States and/or certain other countries. Adobe, Adobe PDF and
PostScript are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries. Mac is trademark of Apple Inc.
Microsoft, Windows, Windows Server, Excel, PowerPoint and Word are
either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Intel and Intel Core are trademarks of Intel Corporation in the U.S.
and/or other countries. Linux® is the registered
trademark of Linus Torvalds in the U.S. and other countries. Other corporate names and/or trademarks are either registered
trademarks or trademarks of each company, respectively.
