VALEZUS T2100 Specification

INNOVATIVE INKJET SOLUTION FOR IDEAL PRODUCTION PRINTING Duplex 320ppm VALEZUS T2100 HIGH-SPEED FULL-COLOR CUT-SHEET INKJET PRINTER

Specifications

ITEM Description
Print Type Line-type inkjet system (drop on-demand)
Ink Type Oil-based pigment ink (Cyan, Magenta, Yellow, Black, Gray)
Print Speed*1 Duplex: 320 ppm, Simplex: 160 ppm (A4 LEF, Letter LEF)
Print Resolution Standard Black: 600dpi x 600dpi
Cyan/Magenta/Yellow/Gray: 300dpi x 300dpi
Fine Black: 600dpi x 600dpi
Cyan/Magenta/Yellow/Gray: 300dpi x 600dpi
Paper Input Size Double Tray Feeder Max: 330.2mm x 465mm (13" x 18.3")
Min: 148mm x 210mm (5.9" x 8.3")
Feed Tray Max: 297mm x 432mm (11.6" x 17.0")
Min: 182mm x 210mm(7.2" x 8.3")
Weight Double Tray Feeder 46gsm to 210gsm (12-lb bond to 56-lb bond)
Feed Tray 52gsm to 104gsm (14-lb bond to 28-lb bond)
Capacity Double Tray Feeder 4,000 sheets x 2 trays *2 (Height up to 440mm (17.3"))
Feed Tray 500 sheets x 3 trays*2 (Height up to 56mm (2.2"))
Paper Output Size Double Tray Stacker Max: 340 x 460 mm (13.3" x 18.1")
Min: 148 x 210 mm (5.9" x 8.3")
Weight Double Tray Stacker 46gsm to 210gsm (12-lb bond to 56-lb bond)
Capacity Double Tray Stacker 4,000 sheets x 2 trays *2*3 (Height up to 440mm (17.3"))
Power Consumption Max. 3,010W
Dimensions (W x D x H) 4,755mm x 750mm x 1,445mm (187.3" x 29.6" x 56.9")
  • *1:When using plain paper and recycled paper (85 gsm (23-lb bond)), and standard density setting.
  • *2:When using plain paper and recycled paper (85 gsm (23-lb bond)).
  • *3:When short edge is less than 182mm or long edge is less than 257mm, Max capacity is 1,000 sheets.
    Specifications are subject to change without notice.

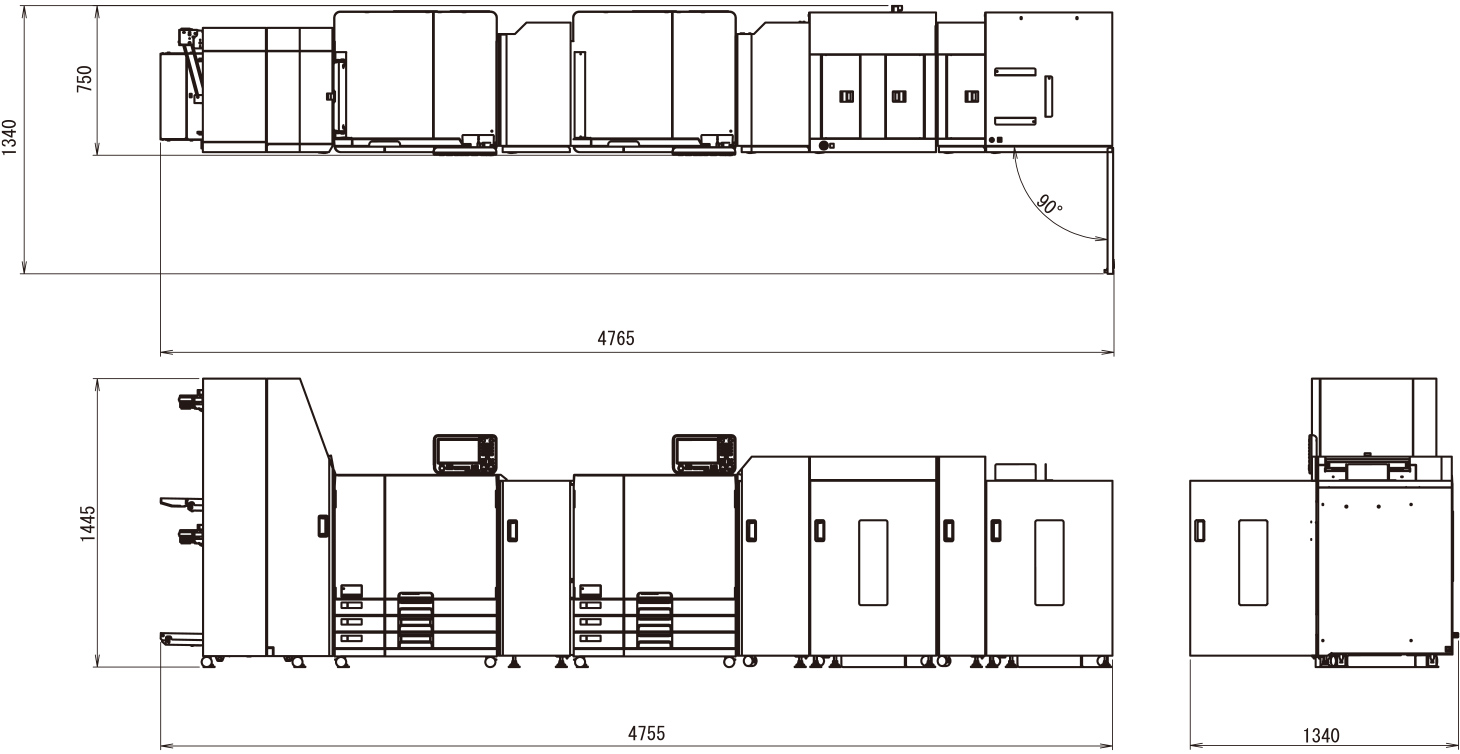

Dimensions

Controller specifications

αStream Pro αStream Starter
Workstation Dell Precision™ T5820 Dell Optiplex™ 5055
Processor Intel Intel Xeon W-2155
(10 cores/4 MB/3,3 Ghz/4,5 Ghz turbo/140 W)
Processor AMD Ryzen™ 7 Pro 1700
(8 cores/4 MB/16T/3 Ghz/65 W)
Memory RAM 32 GB (4 x 8 GB) DDR4 2666 MHZ RAM 32 GB (4 x 8 GB) DDR4 2400 MHZ
Hard Drives 2 x 2.5" 500GB 7200rpm SATA Hard Drive
Operating System Windows® IoT 10
Input Data Stream IPDS connection over TCP/IP, AFP, PDF (Level 1.3, 1.4, 1.5, 1.6, 1.7) (PDF/X-1a, PDF/X-3, PDF/X-4, PDF/X-5, PDF/VT), PostScript® (EPS, PS) level 3, Graphic' Arts, TIFF (Mono and Multi-Pages), JPEG, JPEG 2000, SVG, SVGz, PNG, GIF PDF (Level 1.3, 1.4, 1.5, 1.6, 1.7) (PDF/X-1a, PDF/X-3, PDF/X-4, PDF/X-5, PDF/VT), PostScript (EPS, PS) level 3, Graphic' Arts, TIFF (Mono and Multi-Pages), JPEG, JPEG 2000, SVG, SVGz, PNG, GI
Color Management Linearization Curves, ICC Profiles, Devices Links, Rendering Intent, Color Mapping table for indexed or named colors (E.g. Pantone colors to CMYK, RGB or LAB color spaces), Passthrough color management for RGB and CMYK input colors : Ability to define directly by object type (text, vector graphics, images), a color encountered in the stream without applying color conversion

Specifications are subject to chnge without notice.
