ComColor FT5430 Specs

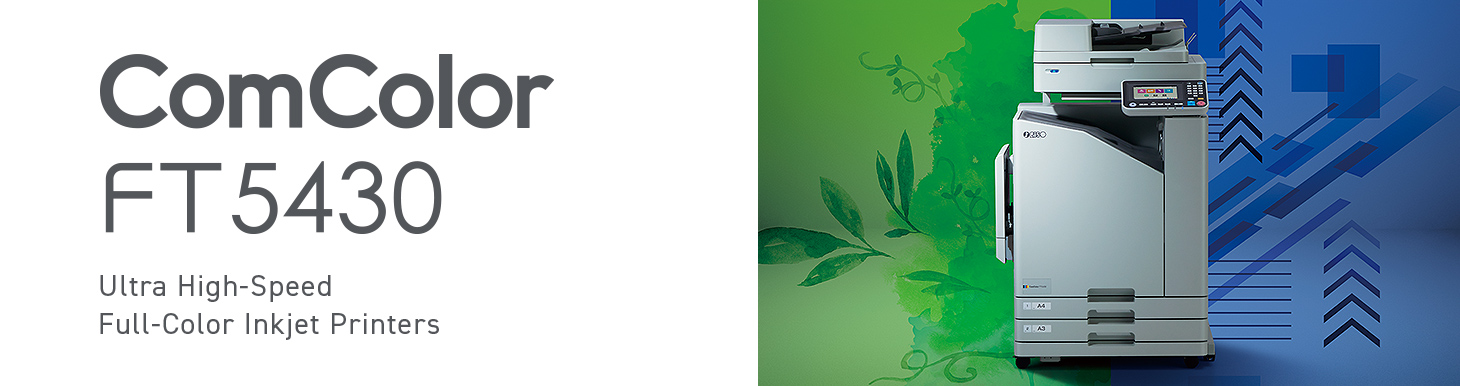

ComColor FT5430 Ultra High-Speed Full-Color Inkjet Printers

Specifications

  FT5430
Print Type Line-type inkjet system
Ink Type Oil-based pigment ink (Cyan, Magenta, Yellow, Black)
Print Resolution Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction)
Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Number of Gray Levels For each CMYK color (11 gray levels)
Data Processing Resolution Standard: 300 dpi × 300 dpi
Fine: 600 dpi × 600 dpi
Line smoothing: 600 dpi × 600 dpi
Warm-up Time 2 min. 30 sec. or less (at room temperature of 23ºC (73.4ºF))
First Print Time *1 5 sec. or less (A4 Long-edge Feed)
Continuous Print Speed *2 A4 Long-edge feed Simplex: 140 ppm   Duplex: 70 sheets/minute (140 ppm)
Letter Long-edge feed Simplex: 140 ppm   Duplex: 70 sheets/minute (140 ppm)
A4 Simplex: 108 ppm   Duplex: 54 sheets/minute (108 ppm)
Letter Simplex: 108 ppm   Duplex: 54 sheets/minute (108 ppm)
B4 (JIS) Simplex: 90 ppm   Duplex: 42 sheets/minute (84 ppm)
Legal Simplex: 92 ppm   Duplex: 42 sheets/minute (84 ppm)
A3 Simplex: 79 ppm   Duplex: 39 sheets/minute (78 ppm)
Ledger Simplex: 77 ppm   Duplex: 38 sheets/minute (76 ppm)
Paper Size Standard Tray Maximum: 340 mm × 550 mm (13 3/8" × 21 5/8") *3
Minimum: 90 mm × 148 mm (3 9/16" × 5 27/32")
Feed Tray Maximum: 297 mm × 432 mm (11 11/16" × 17")
Minimum: 182 mm × 182 mm (7 3/16" × 7 3/16")
Printable Area Maximum: 310 mm × 544 mm (12 3/16" × 21 13/32")
Guaranteed Print Area *4 Standard: Margin width of 5 mm (7/32")
Maximum: Margin width of 3 mm (1/8")
Paper Weight Standard Tray Simplex:46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5
Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5 for A4/46 gsm to 104 gsm (12-lb bond to 28-lb bond) for A3, B4 (JIS)
Feed Tray Simplex/Duplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
Paper Tray Capacity Standard Tray Height up to 110 mm (4 5/16")
Feed Tray Height up to 56 mm (2 3/16") (2 trays)
Output Tray Capacity Height up to 56 mm (2 3/16")
Page Description Language RISORINC/C IV
Supported Protocols TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1)
Supported Operating Systems Standard Microsoft®: Windows® 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit)*6
Optional *7 Mac: macOS v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) *6
Linux®: Compatible with PPD only
Network Interface Ethernet 1000BASE-T/100BASE-TX/10BASE-T×2 Channel
Memory Capacity 4 GB
Hard Disk *8 Capacity 500 GB
Available Space Approx. 430 GB
Operating System Linux
Power Source AC 100 - 240 V, 10.0 - 5.0 A, 50 - 60 Hz
Power Consumption Max. 1,000 W
Ready *9: 95 W or less
Sleep *10: 2 W or less
Stand-by: 0.4 W or less
Operating Noise 65 dB (A) or less at printing
Operating Environment  Temperature: 15 ºC to 30 ºC(59ºF to 86ºF)
Humidity: 40% to 70% RH (non-condensing)
Dimensions (W × D × H) In use: 1,030 mm × 735 mm × 1,115 mm(40 19/32" × 28 15/16" × 43 29/32")
With cover and tray closed: 775 mm × 710 mm × 970 mm(30 17/32" × 27 15/16" × 38 7/32")
Weight  Approx. 137 kg (302 lb)
Dimensions When Operating (W × D × H) With the front cover open and the operation panel in the upright position:
1,185 mm × 1,225 mm × 1,115 mm(46 21/32" × 47 27/32" × 43 29/32")
Accessories Scanner HS7000, Additional 2000 Sheet Feeder FG20, Face Down Finisher F10,
Multifunction Finisher FG20/Folder Unit FG20, Auto-Control Stacking Tray II, Wide Stacking Tray,
ComColorExpress RS1200C, PS Kit FG10, IC Card Authentication Kit II, Envelope Feed Kit, Card Feed Kit

Specifications are subject to change without notice.

  • *1:Within 10 minutes after the last print job.
  • *2:When using plain paper and recycled paper (85 gsm), and standard density setting. Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)]. The continuous print speed varies depending on the type of optional output equipment connected. Face Down Finisher: [Without offset:] 140 sheets/minute (A4-LEF Simplex), [Offset output:] 115 sheets/minute (A4-LEF Simplex).
  • *3:When using duplex print: 340 mm × 460 mm.
  • *4:The guaranteed area when printing images is the area enclosed within 5 mm of the edges of the paper. The margin when printing envelopes is 10 mm.
  • *5:Duplex printing is not guaranteed with thick paper the weight of which is greater than 104 gsm.
  • *6:For the OS version, please contact your local sales representative.
  • *7:Optional PS Kit FG10 or ComColor Express RS1200C is required.
  • *8:One gigabyte (GB) is calculated as 1 billion bytes.
  • *9:Without printing and temperature adjustment operation.
  • *10:When setting [Power Consumption (in sleep)] to [Low].
