ComColor FT Accessories
- ComColor
FT Series - ComColor
FT5430 - ComColor
FT5230 - ComColor
FT5231 - ComColor
FT5000 - ComColor
FT2430 - ComColor
FT1430 - ComColor
FT Accessories
Specifications

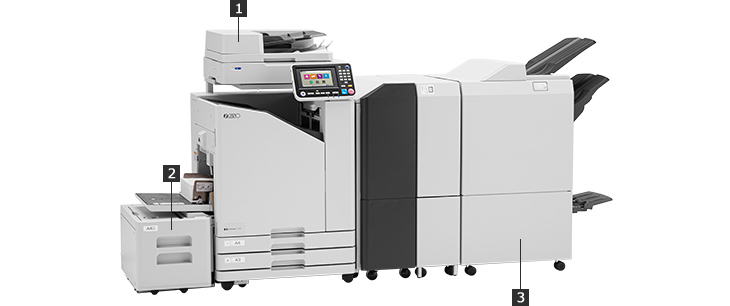

1.Scanner HS7000
| Type | Flat Bed Scanner with Automatic Document Feeder (ADF) | |
|---|---|---|
| Scanning Modes | Copy mode: Color, Monochrome, Auto, Cyan, Magenta Scan mode: Color, Monochrome, Auto, Grayscale |
|
| Scanning Resolution | 600 dpi, 400 dpi, 300 dpi, or 200 dpi | |
| Maximum Scanning Area | 303 mm × 432 mm (11 15/16" × 17") (when using platen glass) 295 mm × 430 mm (11 5/8" × 16 15/16") (when using ADF) |
|
| Copy | Writing Resolution |
Standard: 300 dpi× 300 dpi Fine: 300 dpi× 600 dpi |
| Copy Paper Size | Maximum: 303 mm × 432 mm (11 15/16" × 17") (equivalent to A3) | |
| First Copy Time | Monochrome/Color: 7 sec. or less (when copying A4/Letter long-edge feed orientation using Color Priority Mode) |
|
| Copying Speed | Simplex copying (A4/Letter long-edge feed, using ADF): 80 ppm or higher Duplex copying (A4/Letter long-edge feed, using ADF): 80 ppm or higher |
|
| Reproduction Size |
50% to 200% (Copy mode) 50% to 200% (Scanner mode, resolution: 200/300 dpi), only 100%(Scanner mode, resolution: 400/600 dpi) |
|
| Auto Document Feeder |
Type | Original source displacement (capable of scanning both sides of a document by simultaneous duplex scanning) |
| Original Size | Maximum: 297 mm × 432 mm (11 11/16" × 17") (equivalent to A3) Minimum: 100 mm × 148 mm (3 15/16" × 5 27/32") |
|
| Paper Weight | 52 gsm to 128 gsm (14-lb bond to 34-lb bond) | |
| Original Capacity | Max. 200 sheets: 80 gsm (21-lb bond) Height up to 25 mm (1") |
|
| Scan | Scanning Gray Levels |
10-bit input and 8-bit output for each RGB color |
| Scanning Speed | Monochrome/Color: 100 ppm *RISO KAGAKU standard original （A4/Letter long-edge feed）, 300 dpi, JPEG, PDF, when stored to main unit hard drive |
|
| Network Interface*1 | Ethernet 1000BASE-T/100BASE-TX/10BASE-T | |
| Data-saving Method*1 |
Save to main unit hard drive, server, or USB flash drive, or send by e-mail | |
| Data-saving Format*1 |
Monochrome: TIFF, PDF, PDF/A Grayscale/Full Color: TIFF, JPEG, PDF, PDF/A |
|
| Power Source | AC 100 V - 240 V, 1.2 A - 0.6 A, 50 Hz - 60 Hz | |
| Power Consumption | Max. 100 W | |
| Dimensions (W × D × H) | 640 mm× 560 mm× 255 mm (25 3/16" × 22 1/16" × 10 1/32") | |
| Required Space with Printer (W × D × H） |
1,235 mm × 1,345 mm × 1,635 mm (48 5/8" × 52 31/32" × 64 3/8") | |
| Weight | Approx. 25 kg (55 lb) | |
- *1:Via the internal host controller
2.Additional 2000 Sheet Feeder FG20
- Paper is replenishable even during printing
- Easy access and loading
- Max. 4,000 sheets in combination with paper feed tray provided with FT main unit
| Applicable Paper Size | A4-LEF, B5 (JIS)-LEF, Letter-LEF |
|---|---|
| Paper Weight | 52 gsm to 104 gsm (14-lb bond to 28-lb bond) |
| Tray Capacity | Height up to 220 mm (8 21/32") |
| Power Source | Power supplied from the main unit |
| Dimensions (W × D × H) | 415 mm × 600 mm × 390 mm (16 11/32" × 23 5/8" × 15 11/32") |
| Weight | Approx. 29 kg(64 lb) |
Available on FT5430/FT5230/FT2430/FT1430
3.Multifunction Finisher FG20
With its intelligent design and automatic execution, the Multifunction Finisher makes finishing processes such as stapling, punching, folding, and booklet making easier and more efficient than ever before.
| Applicable Paper Size | Top Tray | Maximum: 330 mm × 488 mm (13" × 19 3/16") (Duplex: 460 mm (18 1/8")) Minimum: 100 mm × 148 mm (3 15/16" × 5 27/32") |
|---|---|---|
| Stacking Tray | Maximum: 330 mm × 488 mm (13" × 19 3/16") (Duplex: 460 mm (18 1/8")) Minimum: 148 mm × 148 mm (5 27/32" × 5 27/32") |
|
| Stapling | Maximum: 297 mm × 432 mm (11 11/16" × 17") Minimum: 182 mm × 148 mm (7 3/16" × 5 27/32") |
|
| Booklet Tray | Maximum: 330 mm × 460 mm (13" × 18 1/8") Minimum: 182 mm × 257 mm (7 3/16" × 10 1/8") |
|
| Paper Weight | Top Tray / Stacking Tray | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) |
| Booklet Tray | 60 gsm to 90 gsm (16-lb bond to 24-lb bond) Cover pages: 90 gsm to 210 gsm (24-lb bond to 56-lb bond) |
|
| Stapling | Maximum Number of Staples | 100 sheets (85 gsm (23-lb bond)) |
| Staple Position | 1 at front side (angle stapling, parallel stapling), 1 at rear side (angle stapling, parallel stapling), 2 at center (parallel stapling) | |
| Punching | Number of Punches | 2 holes, 4 holes (2 holes, 3 holes) |
| Paper Size | 2 holes: A3, B4 (JIS), A4-LEF, A4, B5 (JIS)-LEF, Ledger, Legal, Letter, Letter-LEF, Foolscap 3 holes: Ledger, Letter-LEF, A3, B4 (JIS), A4-LEF, B5 (JIS)-LEF 4 holes: A3, A4-LEF |
|
| Paper Weight | 52 gsm to 210 gsm (14-lb bond to 56-lb bond) | |
| Creating a Booklet | Maximum Number of Sheets | Center margin: 20 sheets (85 gsm (23-lb bond)) 80 pages 2-fold: 5 sheets (85 gsm (23-lb bond)) 20 pages |
| Power Source | AC 100-240 V, 50-60 Hz, 2.3-1.1 A (3.0-1.5 A with Folder Unit) | |
| Power Consumption | Max. 230 W (300 W with Folder Unit) | |
| Dimensions (W × D × H) | 1,205 mm (1,440 mm with Folder Unit [235 mm]) × 735 mm× 1,215 mm (47 7/16" (56 11/16" with Folder Unit [9 1/4"]) × 28 15/16" × 47 27/32") |
|
| Weight | Approx. 146 kg (198 kg with Folder Unit [52 kg]) (322 lb (437 lb with Folder Unit [115 lb])) | |
4.Face Down Finisher II F10
ComColor finisher exclusively for offset stacking and stapling finished prints.
| Type | External Unit |
|---|---|
| Finishing Functions | Offset stacking, Stapling, Staple-free Stapling |
| Applicable Paper Size | Without offset Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″) Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″) |
| Offset output Regular sized paper width: 182 mm × 257 mm (7 3/16″ × 10 1/8″) - 297 mm × 431.8 mm (11 11/16″ × 17″) Irregular sized paper width: 131 mm × 148 mm (5 3/16″ × 5 27/32″) - 305 mm × 550 mm (12″ × 21 5/8″) |
|
| Paper Weight | 46 gsm (12-lb bond) to 210 gsm (56-lb bond) (plain paper, recycled paper, postcards) |
| Tray Capacity | Height up to 108 mm (4 1/4″) |
| Maximum Number of Staples | 50 sheets*1 A4, A4-LEF, JIS-B5, JIS-B5-LEF, Letter, Letter-LEF 25 sheets*1 A3, JIS-B4, Ledger, Legal, Foolscap |
Maximum Number of Staple-free Stapling |
52gsm to 64gsm: 10 sheets or less Over 64gsm to 81.4gsm: 8 sheets or less Over 81.4gsm to 105gsm: 6 sheets or less *2 *3 *4 |
| Applicable Paper Size for Staple | A3, JIS-B4, A4, A4-LEF, JIS-B5, JIS-B5-LEF, Ledger, Legal, Letter, Letter-LEF, Foolscap |
| Paper Weight for Staple | 52 gsm (14-lb bond) to 210 gsm (56-lb bond) (plain paper, recycled paper) |
| Staple Position | 1 at front side (angle stapling) / 1 at rear side (angle stapling) 2 at center (parallel stapling) |
| Power Source | AC 100-240 V, 1.1-0.5 A, 50-60 Hz |
| Power Consumption | Max. 100 W |
| Dimensions (W × D × H) | 635 mm × 775 mm × 580 mm (25″ × 30 1/2″ × 22 27/32″) |
| Weight | Approx. 37 kg (82 lb) |
| Dimensions When Operating (when Connected to main unit) (W × D × H) | 1,420 mm × 1,220 mm × 1,315 mm (55 29/32″ × 48 1/32″ × 51 25/32″) |
- *1:When using plain paper and recycled paper (85 gsm (23-lb bond))
- *2:The paper in the stack must be of the same paper type and have the same grain direction.
- *3:Depending on the paper quality and brand, the above specifications may not be met.
- *4:If there is printing on the staple position, the fastening force may be weak.

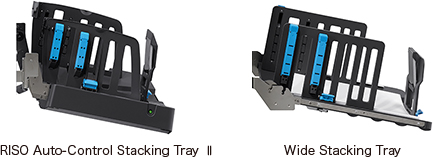

5.RISO Auto-Control Stacking TrayⅡ·Wide Stacking Tray
The paper guides automatically open to the correct with to match the paper in use.
| Model Name | RISO Auto-control Stacking TrayⅡ | Wide Stacking Tray | |
|---|---|---|---|
| Paper Size | Maximum: 320 mm × 432 mm(12 9/16″ × 17″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
Maximum: 340 mm × 550 mm(13 3/8″ × 21 5/8″) Minimum: 90 mm × 148 mm(3 15/16″ × 5 13/16″) |
|
| Tray Capacity*1 | 1,000 sheets | ||
| Dimensions when connected to Printer (W × D × H) | In use | 1,580mm ×725mm ×1,115mm (62 7/32″ × 28 9/16″ × 43 29/32″) |
1,705mm ×725mm ×1,115mm (67 1/8″ × 28 9/16″ × 43 29/32″) |
| In storage | 1,005mm ×705mm ×1,045mm (39 19/32″ × 27 25/32″ × 41 5/32″) |
950mm ×705mm ×1,015mm (37 13/32″ × 27 25/32″ × 39 31/32″) |
|
| Weight | Approximately 8 kg (17 lb) | Approximately 5 kg (11 lb) | |
- *1:When using plain paper (85 gsm (23-lb bond)).
6.ComColorExpress RS1200C
RIP software that supports the functions and workflows essential for transactional printing, bringing high productivity to every business environment.
ComColorExpress RS1200C specifications
| Compatible printer | ComColor FT Series |
|---|---|
| PDL | PostScript3*, PDF (1.7), PCL 5c, PCL 6 (PCL XL), TIFF (6.0), PPML (2.1) *Genuine Adobe engine |
| Applicable protocol | TCP/IP, HTTP, HTTPS(TLS1.2), DHCP, FTP, SMBv3, NetBIOS, LPR, IPP, Port 9100(RAW port), IPv4, IPv6, IPSec (IKEv1) |
| Installed Fonts | PS: 139 fonts (Type 1: 120, TrueType: 19) PCL: 80 fonts |
System requirements for RIP software
The computer in which the RIP software is installed must be dedicated to RIP operation.
| Operating system | Windows® 10 Home/Pro (64-bit) |
|---|---|
| CPU | Intel® Core™ i7-9700 or faster |
| Memory | 16 GB or greater |
| Hard disk | 501 GB or greater of free space |
| Network interface | 2 ports (Ethernet: 1000BASE-T) 1st port: For sending and receiving data to/from a client computer 2nd port: For sending and receiving data to/from ComColor |
| USB port | 2 ports For dongle connection: 1 port (USB 3.0 or later) For software update: 1 port (USB 2.0 or later) |
Supported OS for printer driver and RISO Management Tool
| Operating system (Client computer) |
Windows: Windows 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit) Mac OS: v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) Linux® Only the operations using the PPD with the CUPS are supported. |
|---|
7.PS Kit FG10
PS Kit supports a variety of operating systems, and PDF files can be printed directly from USB flash drives.
| Type | RIP option | |
|---|---|---|
| PDL (Page Description Language) | PostScript Level3*1 PDF (1.7) PCL 5c, PCL 6 (PCL XL) TIFF (6.0) |
|
| Supported Protocols | TCP/IP, HTTP, HTTPs, DHCP, ftp, lpr, IPP, SNMP, Port9100 (RAW port), IPv4, IPv6, IPsec | |
| Installed Fonts | PS: 136 Roman fonts and 2 Japanese fonts PCL: 88 Roman fonts |
|
- *1:Genuine Adobe engine.
8. IC Card Authentication Kit Ⅱ
The optional IC Card Authentication kit enables user management using an IC card.
| Applicable Card | ISO 14443 TypeA/TypeB/TypeC (FeliCa/Mifare) | |
|---|---|---|
| Radio Law Category | Guided read-write communication equipment | |
| Power Source | Power supplied from the USB port | |
| Operating Environment | Temperature: 15℃ to 30℃ (59℉ to 86℉) Humidity: 40% to 70% RH (non-condensing) |
|
| Dimensions(W × D × H) | 93 mm × 65 mm × 19 mm (3 21/32″ × 2 9/16″ × 3/4″) (excluding protruding parts) | |
| Weight | Approx. 90 g (3 oz) | |
9.Envelope Feed Kit/Card Feed Kit
| Model Name | Envelope Feed Kit | Card Feed Kit |
|---|---|---|
| Paper Size | Maximum: 270 mm × 382 mm (10 5/8″ × 15 1/16″) Minimum: 90 mm × 148 mm (3 9/16″ × 5 13/16″) |
Maximum: 160 mm × 218 mm (6 5/16″ × 8 9/16″) Minimum: 100 mm × 148 mm (3 15/16″ × 5 13/16″) |
| Paper Weight | 50 gsm to 120 gsm (13-lb bond to 32-lb bond) | 100 gsm to 400 gsm (27-lb bond to 107-lb bond) |
10.RISO Security Package F20
This is to enhance security functions with encrypted communication functions or user authentication functions to prevent tampering by a third party.
This product comply FT series to ISO15408 certification with HCD PP (Protection Profile for Hardcopy Devices).
| Version of Common Criteria(ISO15408) | 3.1 Release5 | |
|---|---|---|
| PP Identifier | Protection Profile for Hardcopy Devices v1.0 | |
| Functions |
Identification ,Authentication and Authorization Access Control Encryption of Stored Data Communication Protection Security Management Audit log Self-test and Firmware Verification |
|
,
